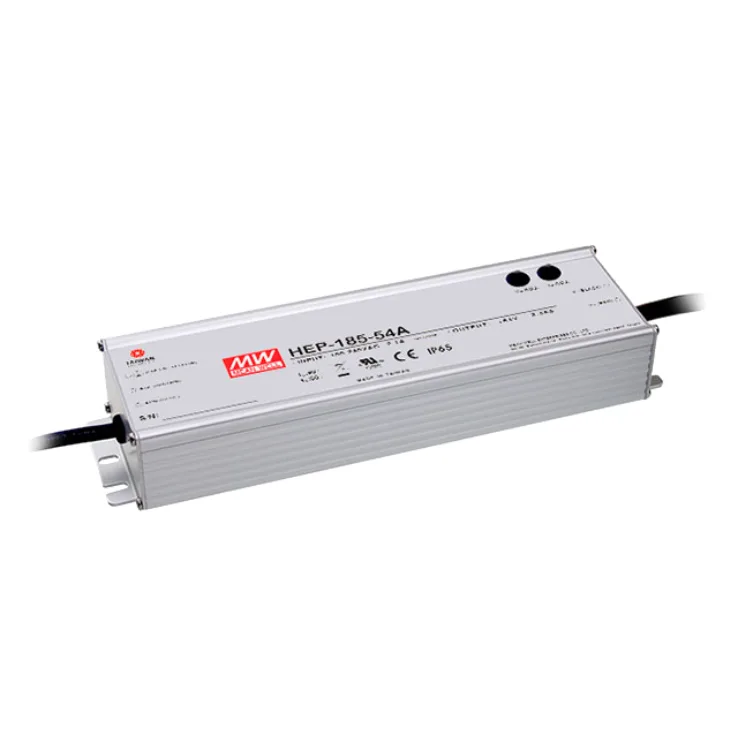

HEP-185 Series Enclosed Power Supplies 156–187.2W

HEP-185 Series Features:

Withstand 10G vibration test

Fanless design, cooling by free air convection

Protections: Short circuit / Over current / Over voltage/Over temperature

Other features:

Spec	HEP-185-12	HEP-185-15	HEP-185-24	HEP-185-36	HEP-185-48	HEP-185-54
Wattage	156	172	187.2	187.2	187.2	187.2
Input Voltage	90-305VAC	90-305VAC	90-305VAC	90-305VAC	90-305VAC	90-305VAC
Output Current	12.5A	10A	6.3A	4.2A	3.2A	2.8A
Output Voltage	12	15	24	36	48	54
Output Voltage Options	Single	Single	Single	Single	Single	Single
DC output adjustment	10.8-13.5V	13.5-17V	22-27V	33-40V	43-53V	49-58V
Dimensions	228x 68x 38.8	228x 68x 38.8	228x 68x 38.8	228x 68x 38.8	228x 68x 38.8	228x 68x 38.8
Working Temperature	-55~+70°C
Safety Standards	UL60950-1, IP65 (or IP68 for HEP-185 Black type) approved ; design refer to TUV EN60950-1
EMC Standards	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 6KV), criteria A
