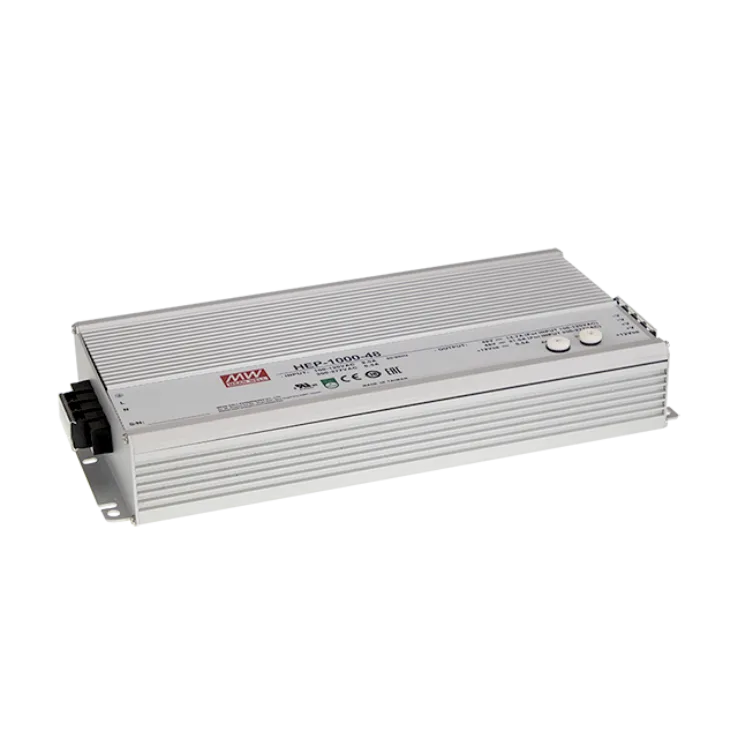

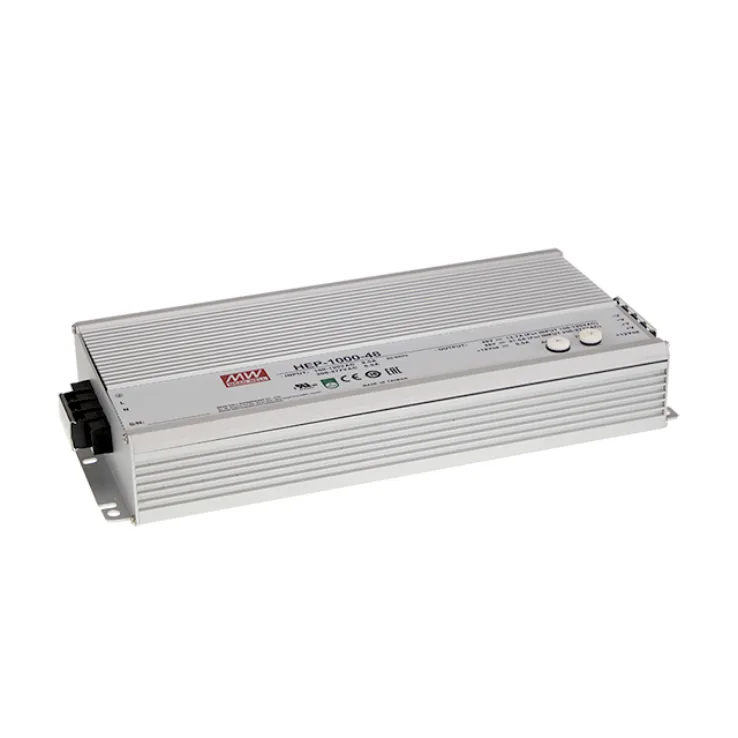

HEP-1000 Series Enclosed Power Supplies 1000W

Download Datasheet
Models:
  • HEP-1000-24
  • HEP-1000-48
  • HEP-1000-100

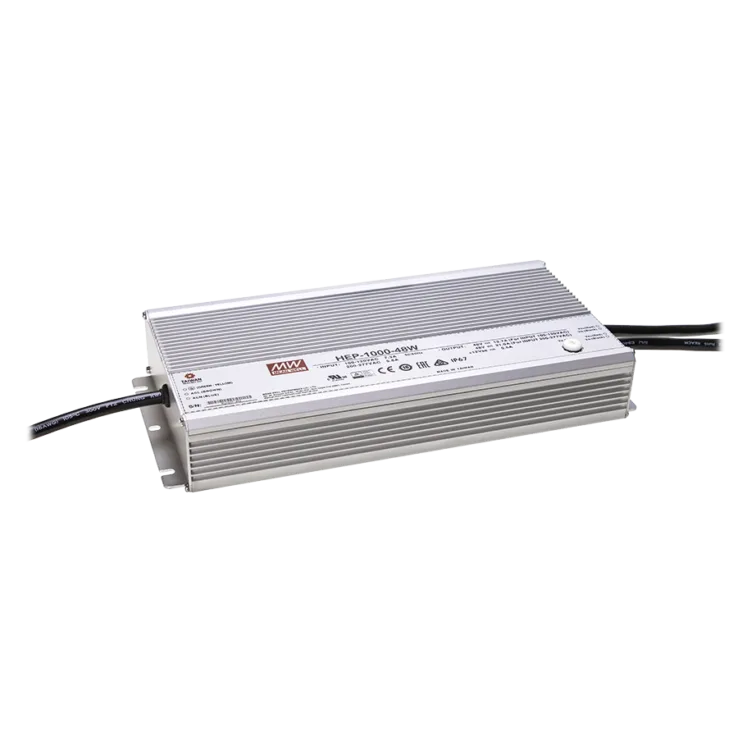

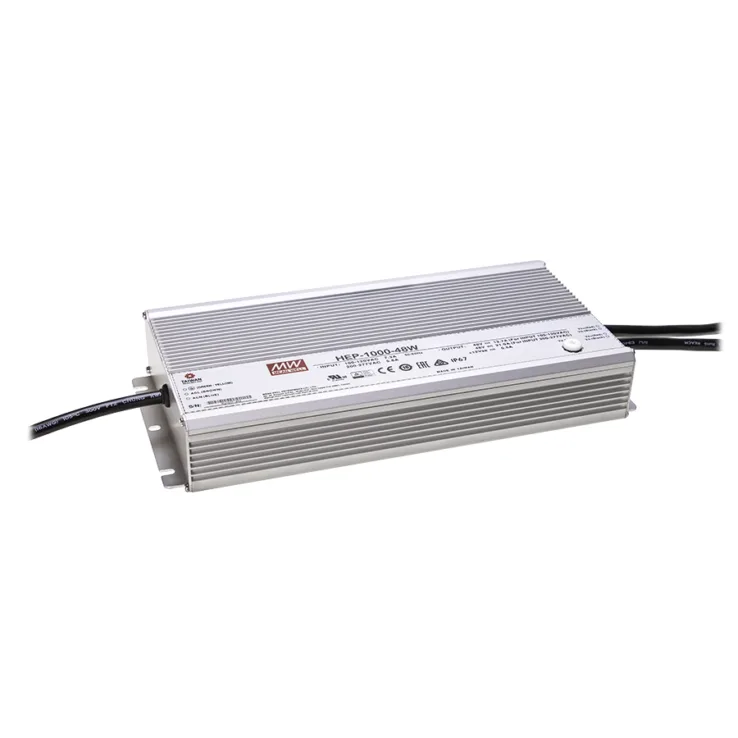

  • HEP-1000-24W
  • HEP-1000-48W
  • HEP-1000-100W
Manufacturer: Mean Well
Type: Enclosed Power Supplies

HEP-1000 Series Features:

Built-in active PFC function

High efficiency up to 96%

Other features:

  • Fanless design, cooling by free air convection
  • Withstand 10G vibration test
  • Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
  • Output voltage and constant current level programmable
  • Optional wiring type with IP67 rating
  • 6 years warranty
Wattage 1000 1000 1000 1000 1000 1000
Input Voltage 90-305VAC, 250-431VDC 90-305VAC, 250-431VDC 90-305VAC, 250-431VDC 90-305VAC, 250-431VDC 90-305VAC, 250-431VDC 90-305VAC, 250-431VDC
Output Current 42A 21A 10A 42A 21A 10A
Output Voltage 24 48 100 24v 48V 100V
Output Voltage Options Single Single Single Single Single Single
Dimensions 310 x 144 x 48.5 310 x 144 x 48.5 310 x 144 x 48.5 310 x 144 x 48.5 310 x 144 x 48.5 310 x 144 x 48.5
Working Temperature -40 - +70°C
Safety Standards UL62368-1,TUV EN62368-1, EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1(by request)
EMC Standards EN55032 (CISPR32), EN61000-3-2, EN61000-4-2,3,4,5,6,8,11
