MEAN WELL

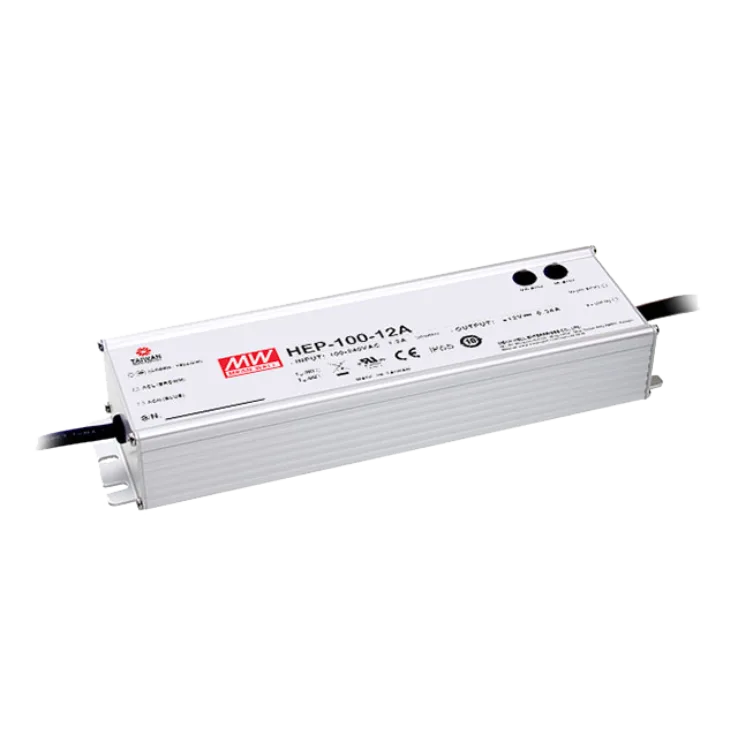

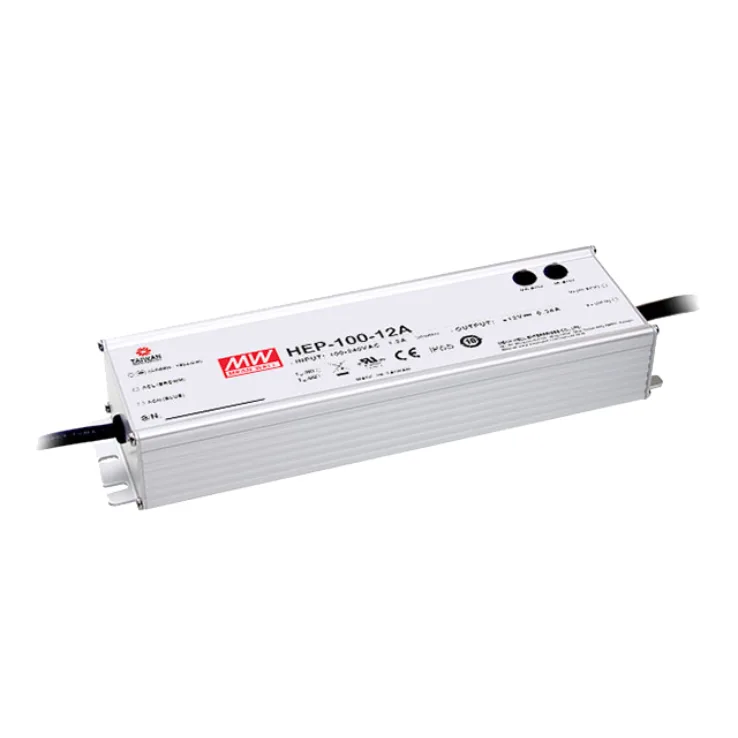

HEP-100 Series Enclosed Power Supplies 95.4–100.08W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
HEP-100 Series Features:
Withstand 10G vibration test
Fanless design, cooling by free air convection
Protections: Short circuit / Over current / Over voltage/Over temperature
Other features:
- Universal AC input (up to 305VAC) / Full range
- Built-in active PFC function
- High efficiency up to 93%
- -55~+70°C wide operating range
- Aluminium case and filling with heat-conducted silicone
- IP65 design, optional IP68 rated model available
- Meet 6KV surge immunity level
- Operation altitude up to 5000 meters
- 6 years warranty
| Wattage | 100.08 | 100.05 | 96 | 95.4 | 96 | 95.58 |
|---|---|---|---|---|---|---|
| Input Voltage | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC |
| Output Current | 8.34A | 6.67A | 4A | 2.65A | 2A | 1.77A |
| Output Voltage | 12 | 15 | 24 | 36 | 48 | 54 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single |
| DC output adjustment | 10.8-13.5V | 13.5-17V | 22-27V | 33-40V | 43-53V | 49-58V |
| Dimensions | 220x 68x 38.8 | 220x 68x 38.8 | 220x 68x 38.8 | 220x 68x 38.8 | 220x 68x 38.8 | 220x 68x 38.8 |
| Working Temperature | -55~+70°C | |||||
| Safety Standards | UL60950-1, IP65 (or IP68 for HEP-100 Black type) approved ; design refer to TUV EN60950-1 | |||||
| EMC Standards | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 6KV), criteria A | |||||
