MEAN WELL

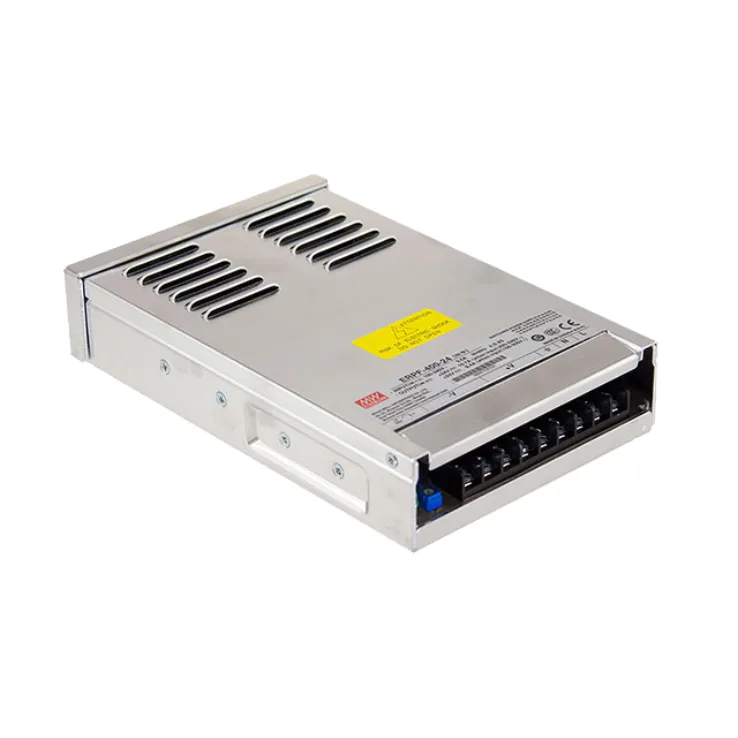

ERPF-400 Series Enclosed Power Supplies 360–400.8W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
ERPF-400 Series Features:
Design against rain splash
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage/Over temperature
Other features:
- Universal AC input / Full range
- Cooling by free air convection
- High efficiency up to 91%
- LED indicator for power on
- Low cost, high reliability
- 100% full load burn-in test
- 3 years warranty
| Wattage | 360 | 400.8 | 398.4 |
|---|---|---|---|
| Input Voltage | 90-264VAC | 90-264VAC | 90-264VAC |
| Output Current | 0-30A | 0-16.7A | 0-8.33A |
| Output Voltage | 12 | 24 | 48 |
| Output Voltage Options | Single | Single | Single |
| DC output adjustment | 10.8-13.2V | 21.6-26.4V | 43.2-52.8V |
| Dimensions | 220.4x 130x 48 | 220.4x 130x 48 | 220.4x 130x 48 |
| Working Temperature | -30~+60°C | ||
| Safety Standards | GB4943.1-2011 | ||
| EMC Standards | EN55022 (CISPR22) class A, GB9254 class A, GB17625.1;EN61000-3-2, EN61000-4-5; light industry level, criteria A | ||
