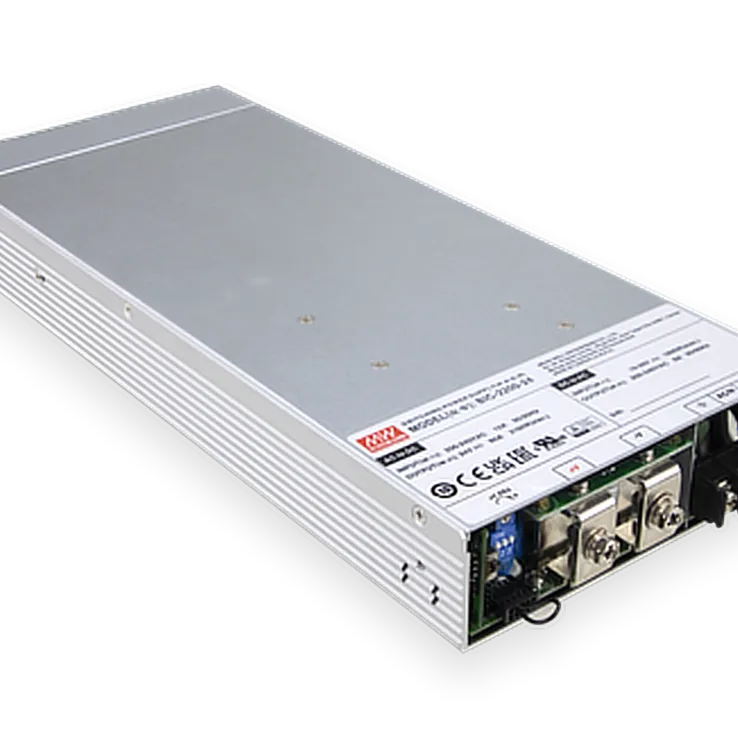

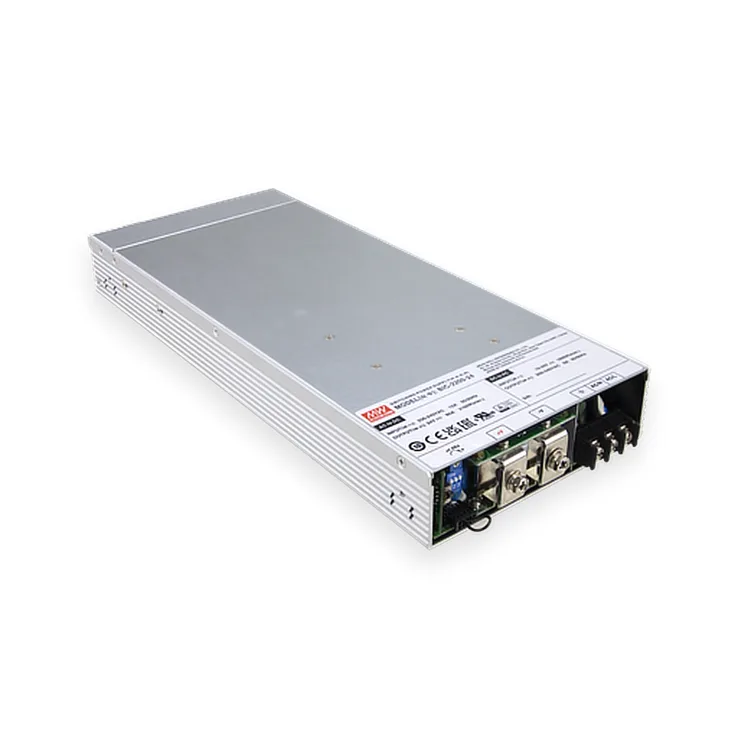

BIC-2200 Series Enclosed Power Supplies 2160W

BIC-2200 Series Features:

The BIC-2200 is a 2.2KW bidirectional power supply with energy recycle function.

Features:

1U low profile design
Full digital design with 93% conversion efficiency for both AC/DC and DC/AC conversion
Ultrafast switching time between AC/DC and DC/AC of 1ms
CB/UL/TUV CB/TUV/UL 62368-1 certified, and design refer to IEC 62477 regulation
Active current sharing up to 11000W(4+1)
<3% Low THDi in both conversion mode
Force charging and discharging mode with CANBus command (optional)
Complete protections: Anti-islanding protection, AC fail protection, DC OVP, OLP, OCP, OTP
5 years warranty

Spec	BIC-2200-12	BIC-2200-24	BIC-2200-48	BIC-2200-96
Wattage	2160	2160	2160	2160
Input Voltage	180~264VAC	180~264VAC	180~264VAC	180~264VAC
Output Current	180	90	45	22.5
Output Voltage	12	24	48	96
Dimensions	330x140x41mm	330x140x41mm	330x140x41mm	330x140x41mm
Working Temperature	-30~70°C
Safety Standards	UL62368-1, CAN/CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, IEC62477-1 (by request) approved
EMC Standards	BS EN/EN55032(CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3
