Eaglerise

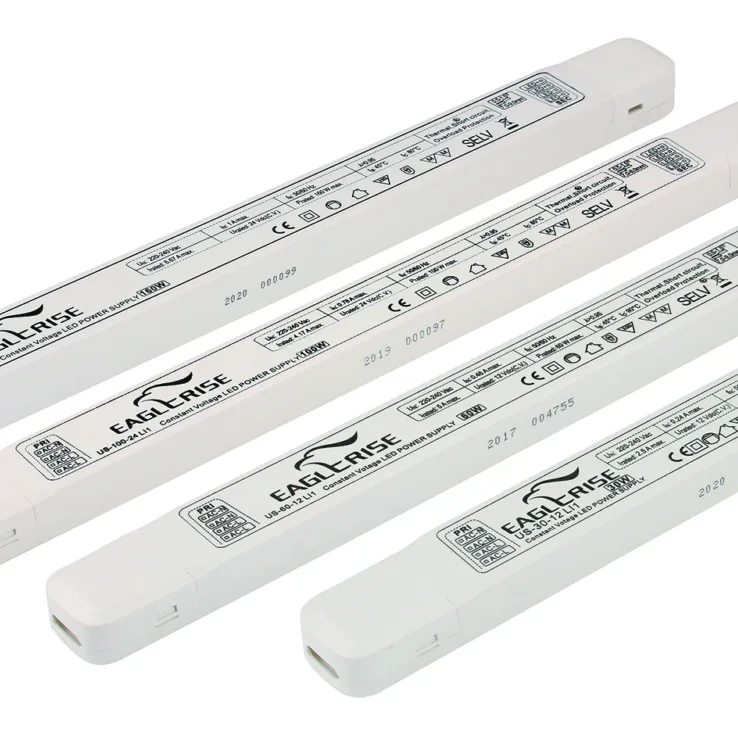

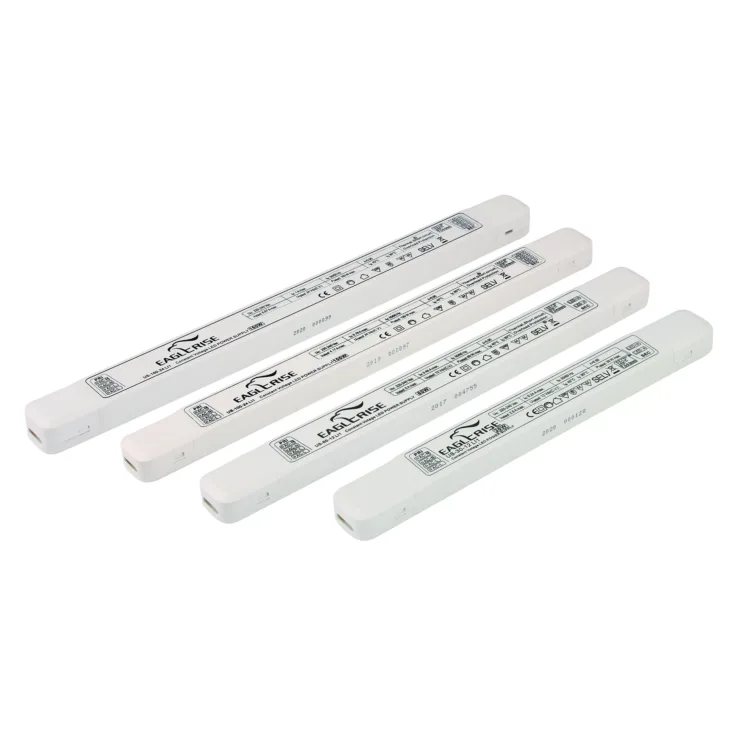

US-60 LI1 Series Constant Voltage LED Drivers 60W
Download Datasheet
| Models: |
|
| Manufacturer: | Eaglerise |
| Type: | Constant Voltage LED Drivers |
US-60 LI1 Series Features:
US-60-XX LI1 is a 60W constant voltage LED driver that operates from 198-264Vac input with 12V or 24V output voltage.
■Features
Class II, SELV, independent
Input Voltage 220-240VAC
Protections: SCP/OLP/OTP
Power Factor >0.95
Efficiency ≥87%
5 years warranty
| Wattage | 60 | 60 |
|---|---|---|
| Input Voltage | 198~264VAC | 198~264VAC |
| Output Current | 0~5A | 0~2.5A |
| Output Voltage | 12VDC | 24VDC |
| Dimensions | 329X30X17(LXWXH)mm | 329X30X17(LXWXH)mm |
| Working Temperature | -20~+45°C | |
| Safety Standards | EN 61347-1; EN61347-2-13; EN62493; EN62384 | |
| EMC Standards | EN55015; EN61000-3-2 Class C; EN61000-3-3 | |
