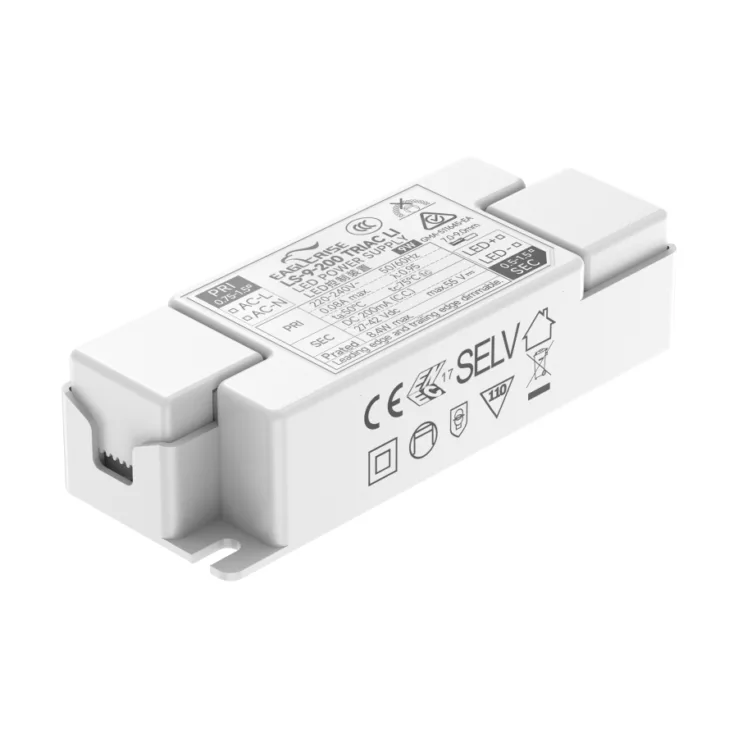

LS-9-XXX TRIAC LI Constant Current LED Drivers 8.4–9.5W

Download Datasheet
Models:
  • LS-9-200 TRIAC LI
  • LS-9-250 TRIAC LI
  • LS-9-300 TRIAC LI
  • LS-9-350 TRIAC LI
  • LS-9-400 TRIAC LI
  • LS-9-450 TRIAC LI
  • LS-9-500 TRIAC LI
Manufacturer: Eaglerise
Type: Constant Current LED Drivers

LS-9-XXX TRIAC LI Features:

LS-9-XXX TRIAC LI is a 9W constant current LED driver that operates from 198-264Vac input with 200mA to 500mA

output current.

Features:

  • Class II，SELV，independent
  • Input Voltage 220-240VAC
  • Protections: SCP/OLP/OVP
  • Power Factor >0.9
  • Efficiency ≥78%
  • Support Leading edge & trailing edge dimmable
  • 5 years warranty
Wattage 8.4 9.5 9 9.5 9.2 9 9.5
Input Voltage 220~240VAC 220~240VAC 220~240VAC 220~240VAC 220~240VAC 220~240VAC 220~240VAC
Output Current 200mA 250mA 300mA 350mA 400mA 450m A 500mA
Output Voltage 55 50 40 35 33 30 28
Dimensions 100 x 38 x 25 100 x 38 x 25 100 x 38 x 25 100 x 38 x 25 100 x 38 x 25 100 x 38 x 25 100 x 38 x 25
Working Temperature -20~50℃ -20~50
Safety Standards EN 61347-1; EN61347-2-13; EN62384
EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3
