Eaglerise

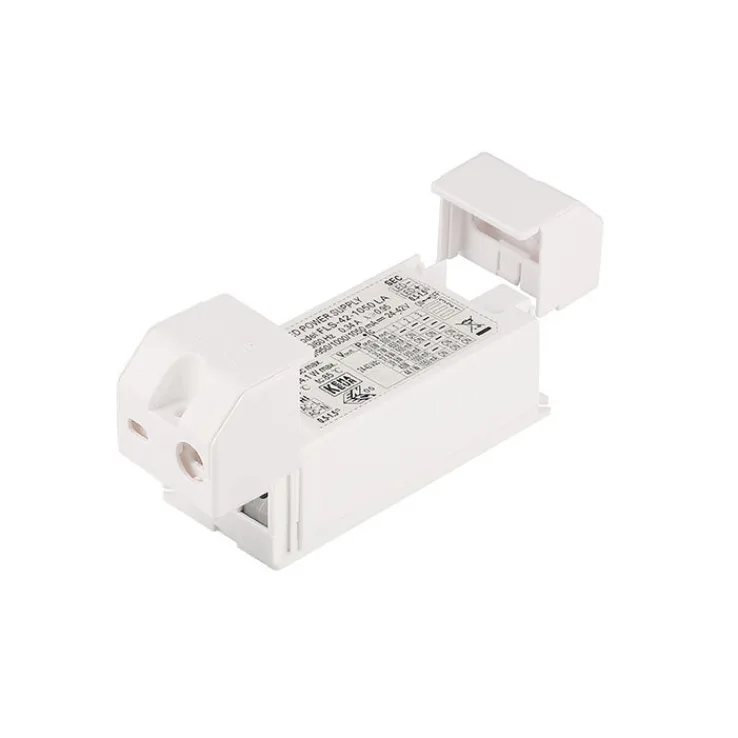

FLS-32-800 LD Constant Current LED Drivers
Download Datasheet
| Models: |
|
| Manufacturer: | Eaglerise |
| Type: | Constant Current LED Drivers |
FLS-32-800 LD Features:
FLS-32-800 LD is a 32W constant current LED driver with 600 to 800mA output current and a forward voltage range from
28 to 40Vdc.
Features:
- Class II, SELV, built-in/independent
- Input Voltage 220-240VAC
- Protections: SCP/OLP/OVP
- Power Factor ＞0.95
- Efficiency(Typ.) ≥87%
- 5 years warranty
| Working Temperature | -20~+40°C |
|---|---|
| Safety Standards | EN 61347-1; EN61347-2-13; EN62384 |
| EMC Standards | EN55015; EN61000-3-2 Class C; EN61000-3-3 |
