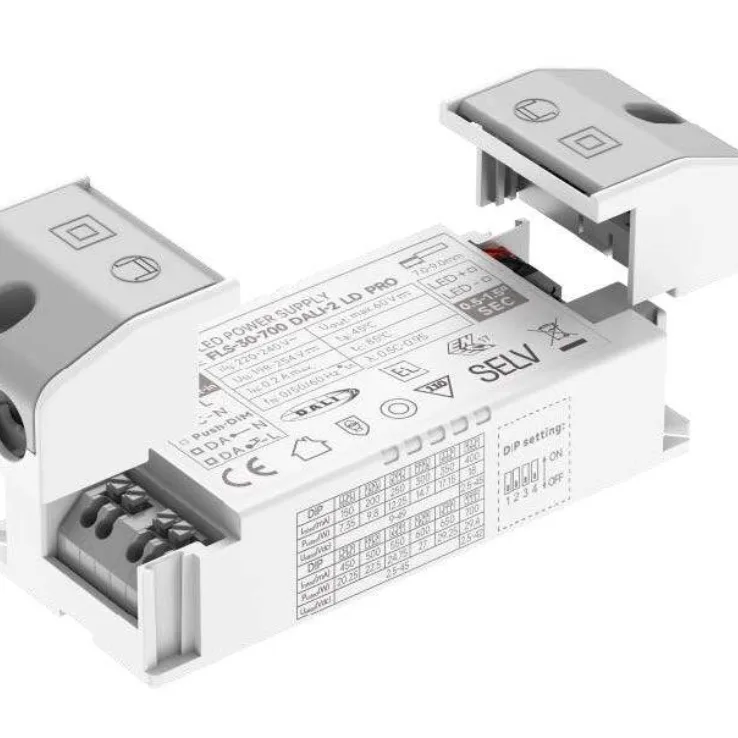

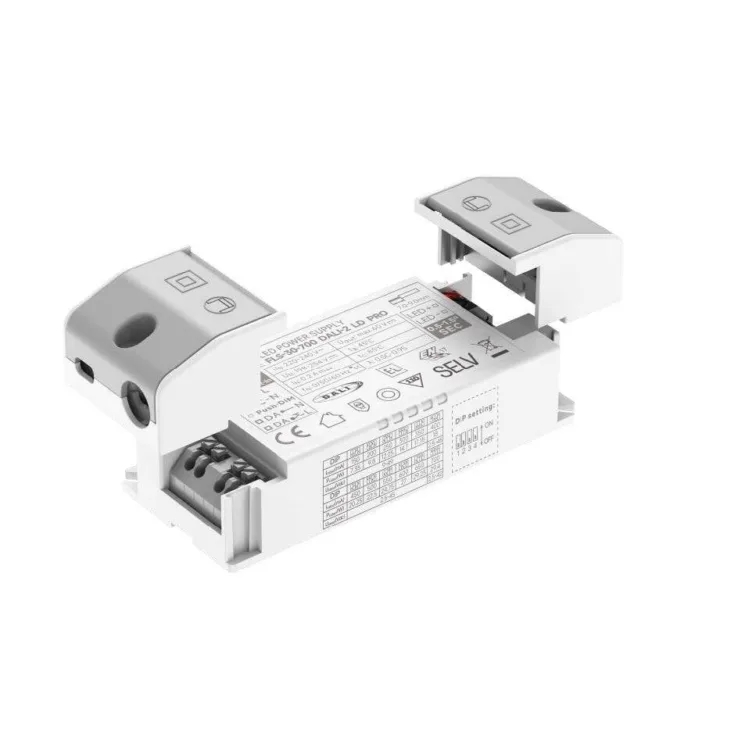

FLS-30-700 DALI-2 LD PRO DALI-2 Constant Current LED Drivers

Models:	FLS-30-700 DALI-2 LD PRO
Manufacturer:	Eaglerise
Type:	Constant Current LED Drivers

FLS-30-700 DALI-2 LD PRO Features:

FLS-30-700 DALI-2 LD PRO is a 30W constant current LED driver with 150 to 700mA output current and a forward voltage range from 2.5 to 49 Vdc

Features:

For luminaries of protection class I, II, SELV, Built-in/Independent (With side caps)
Input voltage: 220-240VAC, 176-280VDC
Protection: SCP/OLP/OVP/OTP
Power Factor: >0.95
Efficiency: 90%@650mA, Full Load, 230Vac
Support DALI-2, Push Dimming
Suitable for emergency lighting acc. to EN 50172
EOFi=100%
22mm height
DALI maintenance (Part 251,252,253)
5 years warranty
LED panel, LED down light, LED spot light

Spec	FLS-30-700 DALI-2 LD PRO
Working Temperature	-20℃~+45℃
Safety Standards	GB19510. 1, GB19510. 14;IEC61347- 1, IEC61347-2- 13;AS/NZS 61347- 1, AS/NZS 61347-2- 13;AS 61347.2.13;EN62384
EMC Standards	GB/T17743, GB17625. 1;EN55015, EN61000-3-2, EN61000-3-3, EN61547;EN55015, EN61000-3-2, EN61000-3-3, EN61547,EN 62493;EN61000-4-5;EN61000-4-2,3,4,5,6,8,11, EN61547
