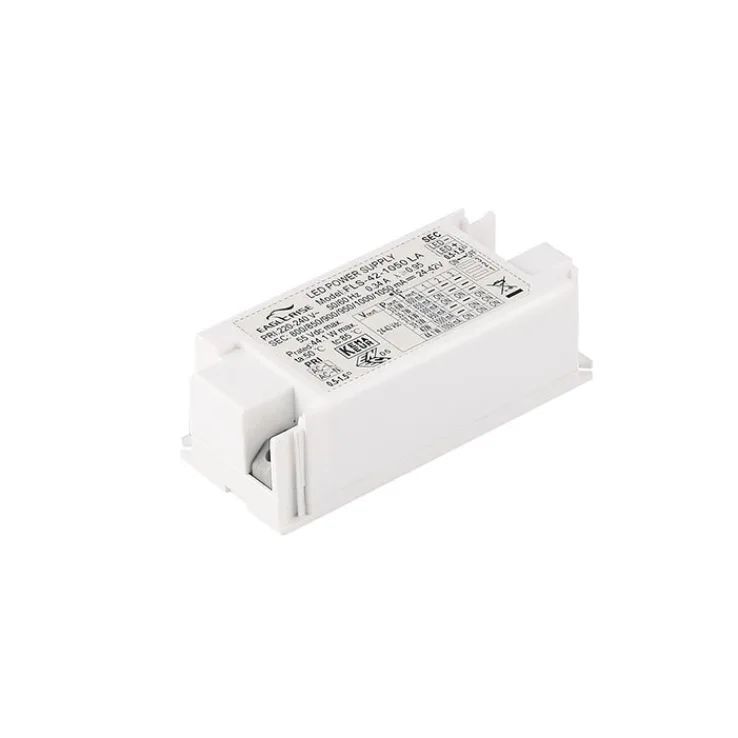

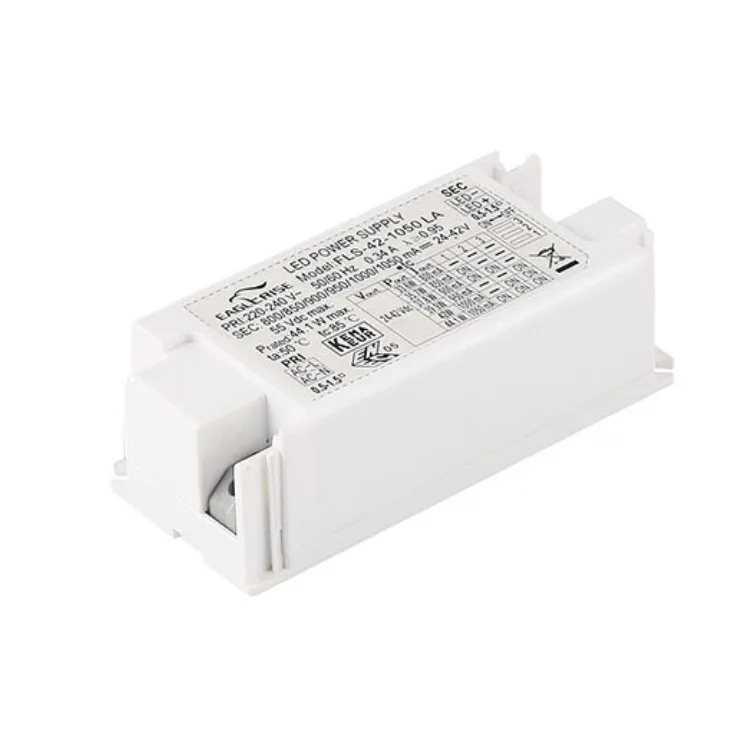

FLS-21-500 LD Constant Current LED Drivers

Download Datasheet
Models:
  • FLS-21-500LD
Manufacturer: Eaglerise
Type: Constant Current LED Drivers

FLS-21-500 LD Features:

FLS-21-500 LD is a 21W constant current LED driver with 150 to 500mA output current and a forward voltage range from

10 to 42Vdc. The output current is selectable by DIP Switch.

Features

  • Class II, SELV, built-in/independent
  • Input Voltage 220-240VAC
  • Protections: SCP/OLP/OVP
  • Power Factor >0.95
  • Efficiency ≥85%
  • 5 years warranty
Working Temperature -20~+45°C
Safety Standards EN 61347-1; EN61347-2-13; EN62384
EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3
