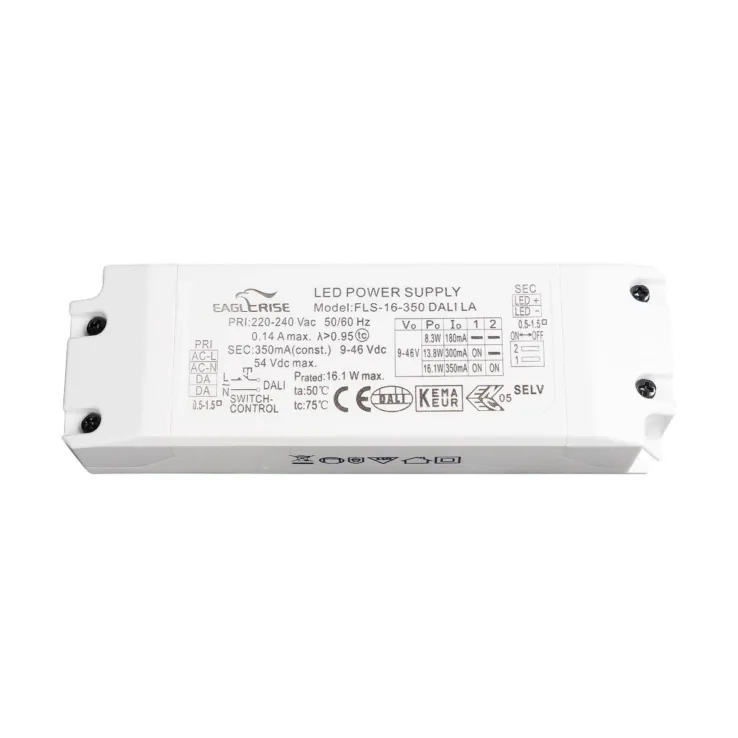

FLS-16 DALI Series DALI Dimmable Constant Current LED Drivers 16W

Download Datasheet
Models:
  • FLS-16-350 DALI LA
  • FLS-16-500 DALI LA
  • FLS-16-700 DALI LA
Manufacturer: Eaglerise
Type: Constant Current LED Drivers

FLS-16 DALI Series Features:

  • Constant current design
  • Input Voltage 220-240VAC
  • Protections: Short circuit/Over load/Over voltage
  • High efficiency up to 80%
  • IP20 Ingress protection
  • DALI Dimmable
  • 5 years warranty
Wattage 16 16 16
Input Voltage 220-240VAC 220-240VAC 220-240VAC
Output Current 180/300/350mA 350/400/450/500mA 550/600/650/700mA
Output Voltage Options Multi Multi Multi
Dimensions 142 x 45 x 30 142 x 45 x 30 142 x 45 x 30
Working Temperature -20~+50°C
Safety Standards EN61347-1; EN61347-2-13
EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN61547; EN61000-4-2 Performance Criteria B; EN 61000-4-5 b 1000V; Performance Criteria C
