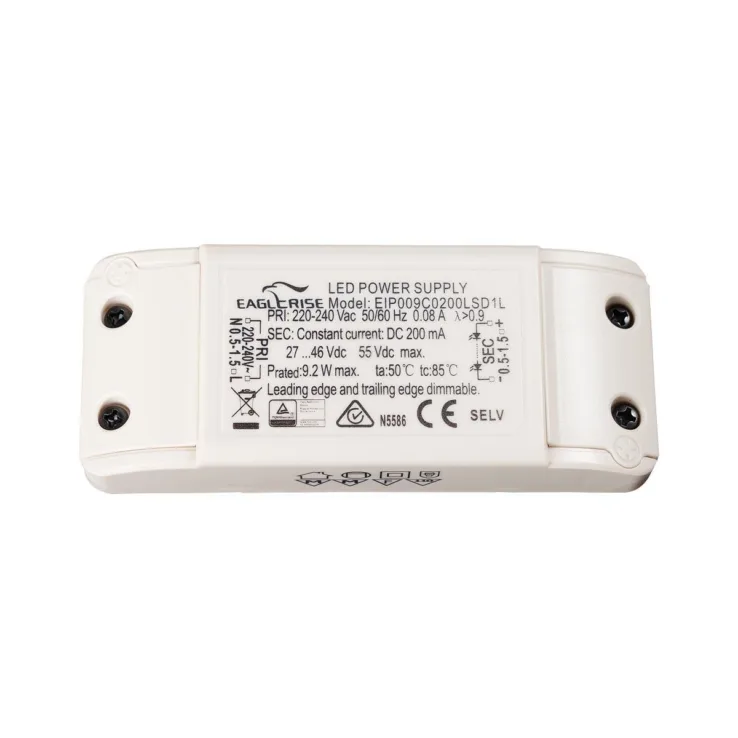

EIP009CxxxxLSD1L Series TRIAC Dimmable Constant Current LED Drivers 9W

Download Datasheet
Models:
  • EIP009C0200LSD1L
  • EIP009C0250LSD1L
  • EIP009C0300LSD1L
  • EIP009C0350LSD1L
  • EIP009C0400LSD1L
  • EIP009C0450LSD1L
  • EIP009C0500LSD1L
  • EIP009C0550LSD1L
  • EIP009C0600LSD1L
  • EIP009C0650LSD1L
  • EIP009C0700LSD1L
Manufacturer: Eaglerise
Type: Constant Current LED Drivers

EIP009CxxxxLSD1L Series Features:

Constant current design

Input Voltage 220-240VAC

Other features:

  • Protections: short circuit/over load/over voltage/over temperature
  • IP20 Ingress protection
  • Power Factor b %0.9
  • Efficiency b %78%
  • Class II, SELV
  • Leading edge & trailing edge dimmable
  • 5 years warranty
Wattage 9 9 9 9 9 9 9 9 9 9 9
Input Voltage 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC
Output Current 200mA 250mA 300mA 350mA 400mA 450mA 500mA 550mA 600mA 650mA 700mA
Output Voltage 55VDC 46VDC 40VDC 35VDC 33VDC 30VDC 28VDC 25VDC 24VDC 24VDC 23VDC
Output Voltage Options Single Single Single Single Single Single Single Single Single Single Single
DC output adjustment 27-46VDC 21.5-36VDC 18-30VDC 15.5-26VDC 13.5-22.5VDC 12-20VDC 10.5-18VDC 9.5-16.5VDC 9-15VDC 8-14VDC 7.5-13VDC
Dimensions 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24
Working Temperature -10 - +50°C
Safety Standards EN 61347-1; EN61347-2-13
EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C
