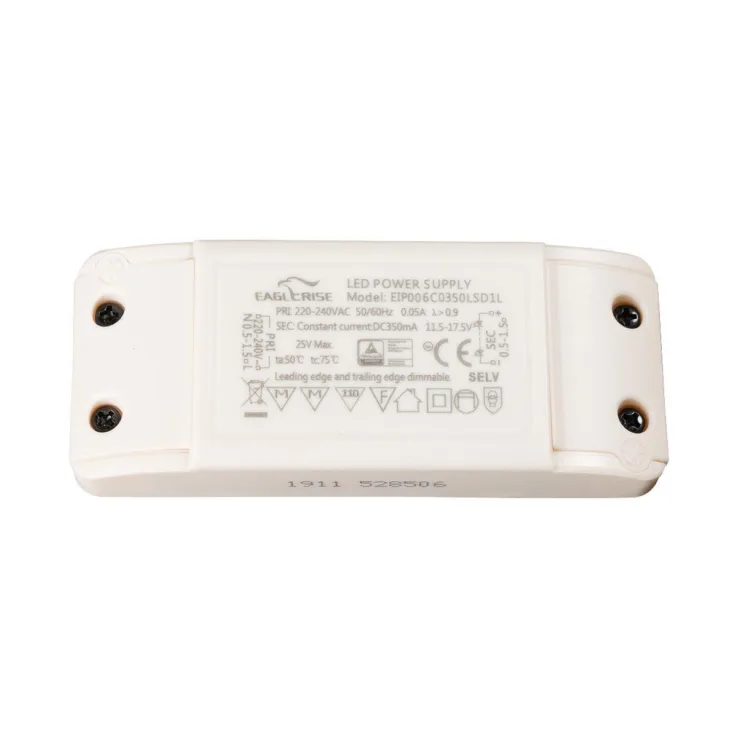

EIP006CxxxxLSD1L Series TRIAC Dimmable Constant Current LED Drivers 6W

Download Datasheet
Models:
  • EIP006CxxxxLSD1L Series
  • EIP006CxxxxLSD1L Series
  • EIP006CxxxxLSD1L Series
  • EIP006CxxxxLSD1L Series
  • EIP006CxxxxLSD1L Series
  • EIP006CxxxxLSD1L Series
  • EIP006CxxxxLSD1L Series
  • EIP006CxxxxLSD1L Series
  • EIP006CxxxxLSD1L Series
  • EIP006CxxxxLSD1L Series
  • EIP006CxxxxLSD1L Series
  • EIP006CxxxxLSD1L Series
Manufacturer: Eaglerise
Type: Constant Current LED Drivers

EIP006CxxxxLSD1L Series Features:

Constant current design

Input Voltage 220-240VAC

Other features:

  • Protections: short circuit/over load/over voltage/over temperature
  • IP20 Ingress protection
  • Power Factor b %0.9
  • Efficiency b %74%
  • Class II, SELV
  • Leading edge & trailing edge dimmable
  • 3 years warranty
Wattage 6 6 6 6 6 6 6 6 6 6 6 6
Input Voltage 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC 220-240VAC
Output Current 150mA 200mA 250mA 300mA 350mA 400mA 450mA 500mA 550mA 600mA 650mA 700mA
Output Voltage 50VDC 40VDC 34VDC 30VDC 25VDC 24VDC 22VDC 20VDC 18VDC 16VDC 16VDC 16VDC
Output Voltage Options Single Single Single Single Single Single Single Single Single Single Single Single
DC output adjustment 26.5-42VDC 20-30VDC 16-24VDC 13-20VDC 11.5-17.5VDC 10-15VDC 9-13.5VDC 8-12VDC 7-11VDC 6.5-10VDC 6.5-9.6VDC 5.6-8.6VDC
Dimensions 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24 105 x 42 x 24
Working Temperature -10 - +50C
Safety Standards EN 61347-1; EN61347-2-13
EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C
