Vox Power VCCS300S Open Frame Power Supplies 300W

Download Datasheet
Models:
  • VCCS300S-12
  • VCCS300S-24
  • VCCS300S-48
Manufacturer: Vox Power
Type: Open Frame Power Supplies

VCCS300S Features:

The VCCS300S series of conduction cooled power supplies deliver a silent 300 Watts of power in a miniature 2x4x1.61 Inch package and is the ultimate power solution for applications where a ruggedized, high efficiency and noiseless state of the art power solution is required.

Fan-less 300W 2” x 4” Medical (BF) & ITE AC/DC power supply

Other features:

  • Modular and user-configurable
  • 300W | 600W | 900W
  • Scalable

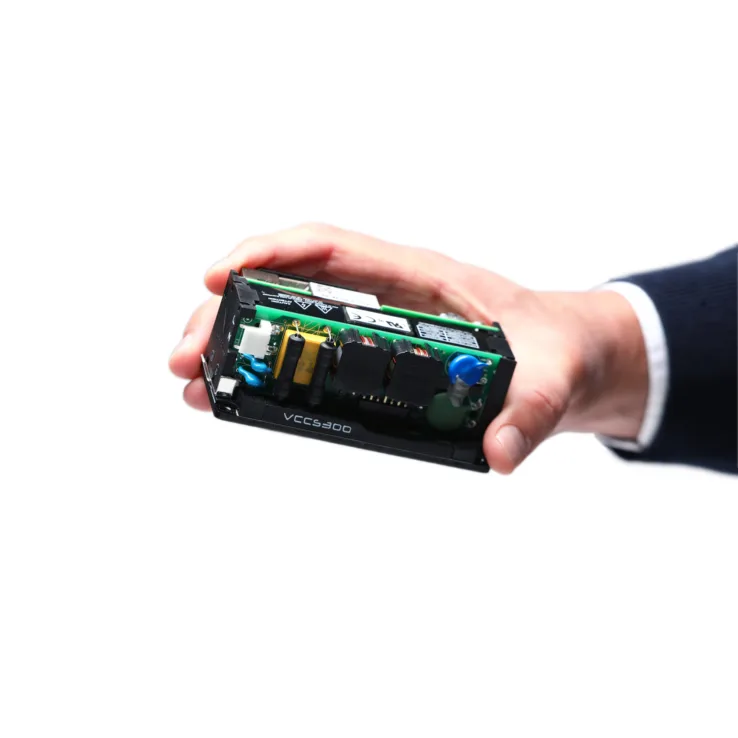

  • 2” x 4” x 1.61”
  • Small
  • Fan-less
  • Silent


Wattage 300 300 300
Input Voltage 85~264VAC 85~264VAC 85~264VAC
Output Current 25 12.5 6.25
Output Voltage 12 24 48
Output Voltage Options Single Single Single
Dimensions 101.3 (L) x 50.8 (W) x 40.2 (H). See diagram for tolerance details 101.3 (L) x 50.8 (W) x 40.2 (H). See diagram for tolerance details 101.3 (L) x 50.8 (W) x 40.2 (H). See diagram for tolerance details
Working Temperature -40-+65B0C
Safety Standards NC/SFC (Class I), 264Vac, 63Hz, 25°C
EMC Standards EN55011/2, IEC61000-3-2, IEC61000-3-3, MIL-STD-461F, Ground, Fixed) Compliant (When mounted in enclosure) Conducted emissions, power leads, 10kHz-10Mhz. MIL-STD-461F: CE102 Compliant
