Vox Power Vox Power logo

VCCM600S Open Frame Power Supplies

Download Datasheet
Models:
  • VCCM600S
Manufacturer: Vox Power
Type: Open Frame Power Supplies

VCCM600S Features:

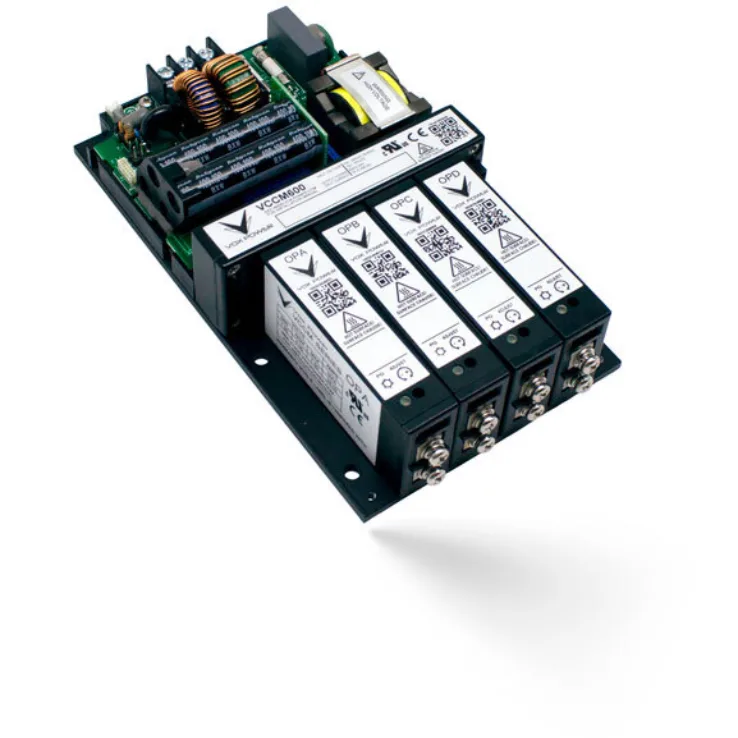

The VCCM600S conduction cooled configurable power supply delivers a silent 600 Watts and up to 750 Watts of peak power for 5 seconds in a rugged 4” x 7” package and is the ultimate power solution for applications where reliability or audible noise are of concern.

Features:

• 600 Watts output (Vin >120VRMS)

• Peak power capability (750W 5sec)

• 7” x 4” x 1.61” footprint

• Convection/Conduction/Forced-Air cooled

• Modular & user configurable

• Low power standby mode (<1W)

• High efficiency – up to 90%

• Additional 5V 1A bias supply

• Remote voltage & current programming

• Current output signal

• Accurate current sharing

• Programmable start-up state (Laser Apps)

• IEC60950 Ed. 2 & IEC62368-1 Ed. 2

• MIL-STD 810G

• MIL-STD 461F

• MIL-STD 704F

• SEMI F47 compliant

• 5 Year warranty

Working Temperature -51~70°C
