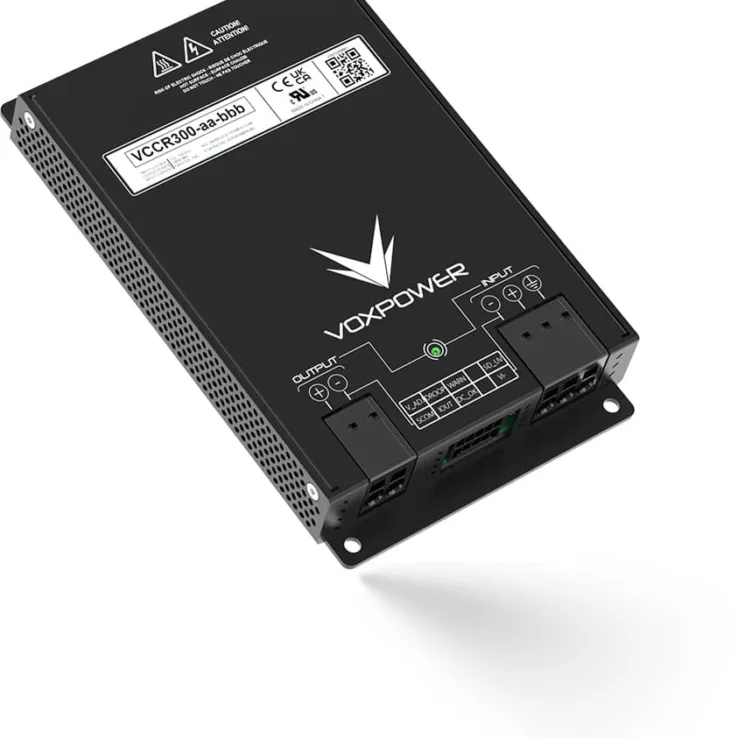

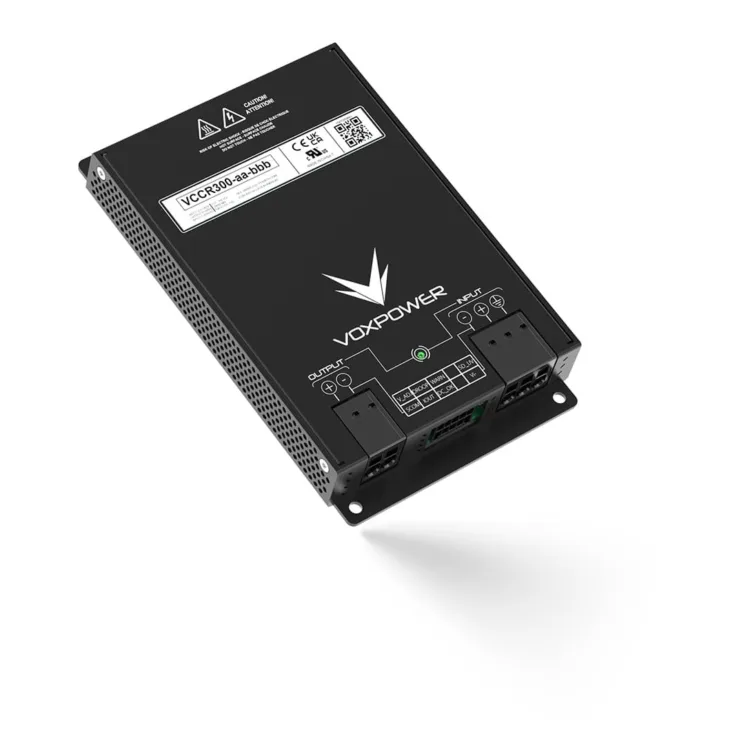

VCCR300 DC-DC Power Supplies 300W

Download Datasheet
Models:
  • VCCR300-12
  • VCCR300-24
  • VCCR300-36
  • VCCR300-48
Manufacturer: Vox Power
Type: DC-DC Power Supplies

VCCR300 Features:

The VCCR300 conduction cooled power series provide a rugged and highly reliable DC/DC power source that can deliver a silent 300 Watts of
power in a 7.43 x 4.6 x 1-inch low profile package.


Features:
Powerful 300 Watts output
Small 7.43" x 4.6" x 1" low profile, 8.77W/in3
Fan-less & conduction cooled
Wide input voltage range (33.6VDC - 160VDC)
Standard output voltages of 12,24,36 & 48
Adjustable output voltage (90% to 125%)
High efficiency - up to 94%
Scalable power architecture
High reliability design
Low no-load & standby power
Wide operating temperature range (-40C to +70C, +85C 10 mins)
Programmable undervoltage protection
Output current measurement signal
Remote shutdown
Extensive protections & system warnings
Holdup as standard (10mS 300W)
Low inrush current
Operating altitude up to 400m
Protective conformal coating as standard
Rugged chassis mount package
24hrs samples from distribution
Silent operation
RoHS2 & REACH compliant
CE & UKCA compliant
Low EMC emissions (EN55032:2020 Class B)
MIL-STD-810G (Vibration & Shock)
IEC62368-1:2018 (Industrial Safety)
EN50155-1:2021 (Railway General)
EN50121-3-2:2019 (Railway EMC)
EN45545 (Fire & Smoke)
Expert technical support
5 year warranty

Wattage 300 300 300 300
Input Voltage 33.6-160VDC 33.6-160VDC 33.6-160VDC 33.6-160VDC
Output Current 25 12.5 8.33 6.25
Output Voltage 12V 12V 36 48
Dimensions 7.43" x 4.6" x 1" 7.43" x 4.6" x 1" 7.43" x 4.6" x 1" 7.43" x 4.6" x 1"
Working Temperature -40C - +70C
Safety Standards The series meets the requirements of the latest railway standards (EN50155), MIL-STD-810G (Shock & Vibration) and is approved to the latest industrial safety standards (IEC/UL62368-1 3RD Edition). EMC emissions and immunity exceed the requirements of EN50121-3-2, EN55035 and EN55032 class B
EMC Standards SEE DATASHEET
