EIRE300 Open Frame Power Supplies 300W

EIRE300 Features:

The EIRE300 series of open frame power supplies deliver 300 Watts of power in a miniature 4 x 2 x 1 inch package. The EIRE300 series is the ultimate
solution for medical, home healthcare, industrial, household appliance or laboratory applications which require a high efficiency, BF rated, leading
edge technology power solution with Class I or II installation capability.

Features:

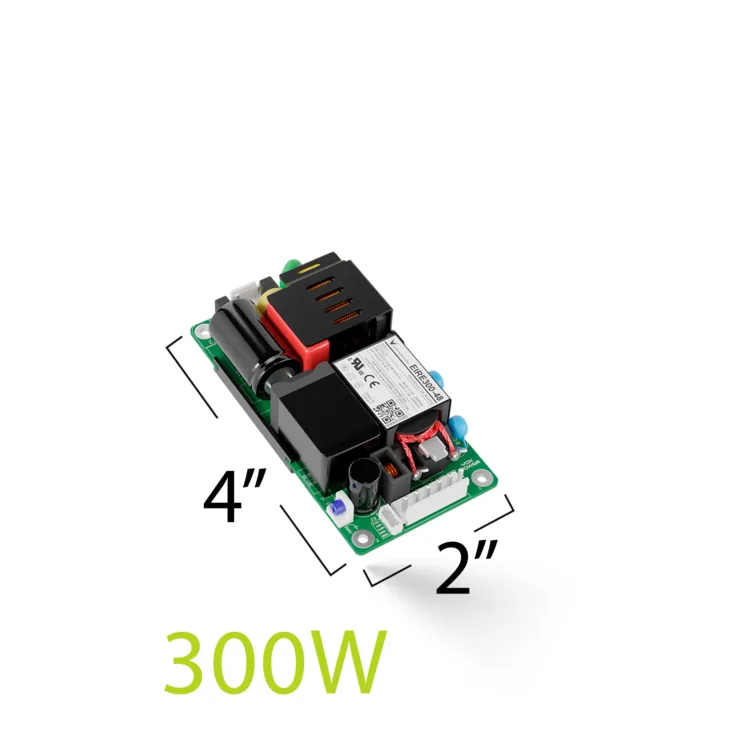

• 4"x2"x1" footprint
• 300 Watts continuous output power
• 125% peak power (1 second)
• Up to 200 Watts convection cooled (115VAC)
• Wide input voltage range (85VAC-264VAC)
• Standard output voltages 12V,15V,18V,24V,28V,36V,48V&54V
• Wide output voltage adjust range
• High efficiency (Up to 95%)
• Low standby power (0.25W typical)
• Low leakage & touch current (<100uA)
• Convection or forced air cooled
• Class I or II installation
• Remote sensing
• AC_OK signal
• 0.5A auxiliary fan supply
• Wide operating temperature range (-40C to +70C, deratings apply)
• Holdup (8mS 300W, 14mS 180W)
• Start into large capacitive load
• Operating altitude up to 5000m
• BF rated output
• Low EMC emissions (EN55032:202 Class B)
• IEC/EN/UL60601-1-2 Edition 4 EMC
• IEC/EN/UL62368-1:2018 (Industrial Safety)
• IEC/EN/UL60601-1:2006 (Medical Safety)
• CE compliant
• RoHS2 & REACH compliant
• High reliability design
• 3 year warranty
• World class engineering support
• Market leading technology
