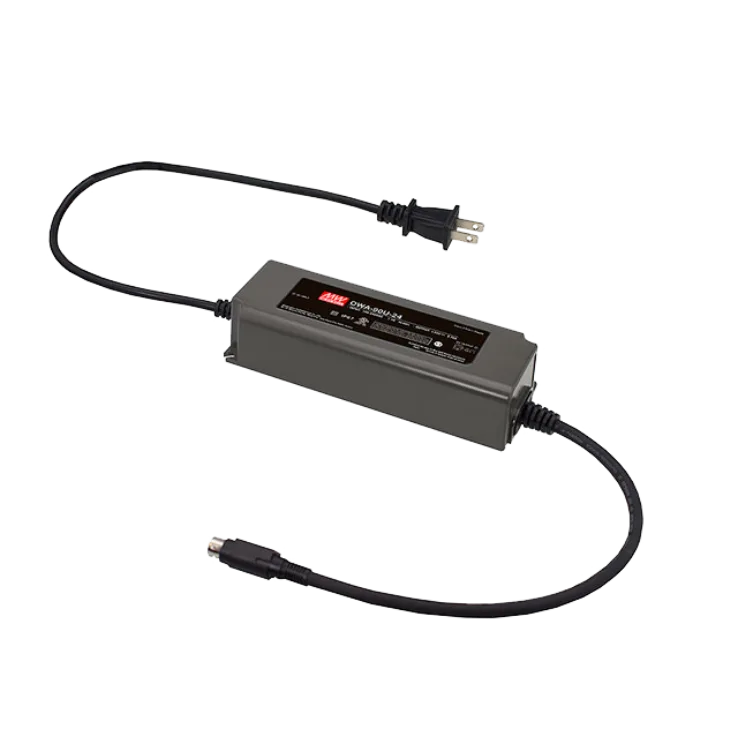

OWA-90U Series External Power Supplies 90W

Models:	OWA-90U-12 OWA-90U-15 OWA-90U-20 OWA-90U-24 OWA-90U-30 OWA-90U-36 OWA-90U-42 OWA-90U-48 OWA-90U-54
Manufacturer:	MEAN WELL
Type:	External Power Supplies

OWA-90U Series Features:

OWA-90U is one 90W single-output external LED power supply series. Pairing the North American type of AC plug and the prevailing DC connectors, OWA-90U, working like an adaptor, simplifies the connection with LED lighting fixtures without extra wiring efforts.

Features:

Universal AC input/Full range
Built-in active PFC function
Class 2 power unit (except OWA-90U-12-15)
High efficiency up to 91%
Protections: Short circuit / Over current / Over voltage / Over temperature
Class II power unit, no FG
Fanless design, cooling by free air convection
No load power consumption <0.15W
Energy efficiency Level VI
Comply with EISA 2007 DoE and NRCan
UL LISTED, suitable for dry and damp locations
5 years warranty

Spec	OWA-90U-12	OWA-90U-15	OWA-90U-20	OWA-90U-24	OWA-90U-30	OWA-90U-36	OWA-90U-42	OWA-90U-48	OWA-90U-54
Wattage	90	90	90	90	90	90	90	90	90
Input Voltage	90~264 VAC 127~370VDC	90~264 VAC 127~370VDC	90~264 VAC 127~370VDC	90~264 VAC 127~370VDC	90~264 VAC 127~370VDC	90~264 VAC 127~370VDC	90~264 VAC 127~370VDC	90~264 VAC 127~370VDC	90~264 VAC 127~370VDC
Output Current	7.5A	6A	4.5A	3.75A	3A	2.5A	2.15A	1.88A	1.67A
Output Voltage	12V	15V	20V	24V	30V	36V	42V	48V	54V
Dimensions	1716337.5mm	1716337.5mm	1716337.5mm	1716337.5mm	1716337.5mm	1716337.5mm	1716337.5mm	1716337.5mm	1716337.5mm
Working Temperature	-40~+70°C
Safety Standards	UI8750 listed, CSA C22.2 No.250.13-12(except for 42V, 48V 54V); IP67 (for main body) approved
EMC Standards	Compliance to FCC Part15
