NGE65 series External Power Supplies 30–65.2W

Download Datasheet
Models:
  • NGE65I05-P1J
  • NGE65I09-P1J
  • NGE65I12-P1J
  • NGE65I15-P1J
  • NGE65I18-P1J
  • NGE65I24-P1J
  • NGE65I48-P1J
Manufacturer: MEAN WELL
Type: External Power Supplies

NGE65 series Features:

Description:

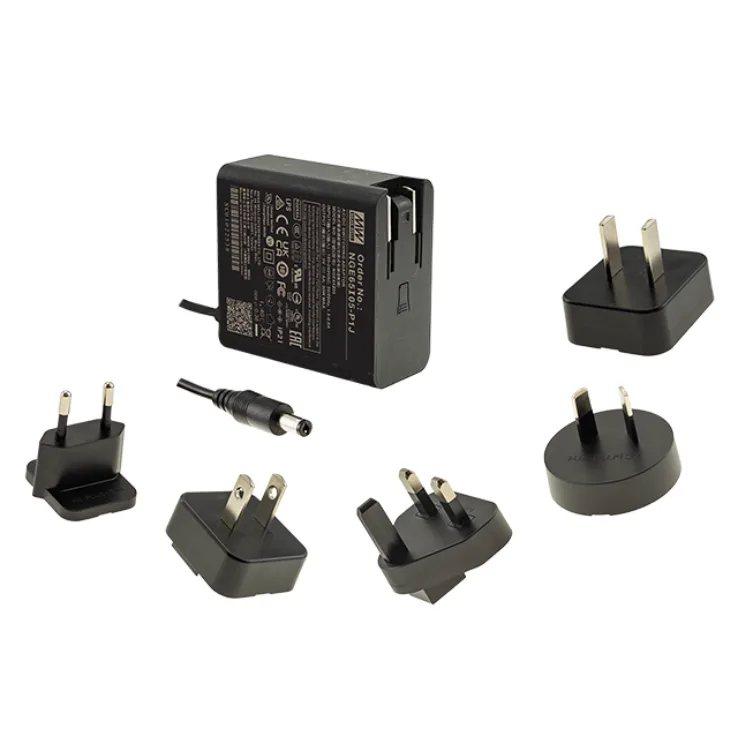

NGE65 is a highly reliable, 65W wall-mounted style single-output green adaptor series, which is compact and convenient for carry.

Features:
MEANWELL Patent Application Number: 202330347779.4
Interchangeable AC plugs
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
Universal AC input / Full range
Ultra slim (30mm)
No load power consumption <0.075W
Energy efficiency Level VI
Class II power (no earth pin)
Protections: Short circuit / Overload / Over voltage
Pass LPS
Extremely leakage current <100uA
-30℃ ~ + 70℃ wide range working temperature
Various DC plug quick adaptor accessory available (plug kit sold separately)
3 years warranty

Wattage 30 53.6 58.5 65.1 65.1 65 65.2
Input Voltage 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC
Output Current 6A 5.96A 4.88A 4.34A 3.62A 2.71A 1.36A
Output Voltage 5V 9V 12V 15V 18V 24V 48V
Dimensions 62*30*65mm (L*W*H) 62*30*65mm (L*W*H) 62*30*65mm (L*W*H) 62*30*65mm (L*W*H) 62*30*65mm (L*W*H) 62*30*65mm (L*W*H) 62*30*65mm (L*W*H)
Working Temperature -30 ~ +70℃ (Refer to "Derating Curve")
Safety Standards CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1; PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved. CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1; PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved
EMC Standards BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, BS EN/EN61000-3-2, BS EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-6 BS EN/EN61000-4-5 BS EN/EN61000-4-8 BS EN/EN61000-4-11 BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN61000-3-2 BS EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-6 BS EN/EN61000-4-5 BS EN/EN61000-4-8 BS EN/EN61000-4-11 BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN61000-3-2 BS EN/EN61000-4-2 BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-6 BS EN/EN61000-4-5 BS EN/EN61000-4-8 BS EN/EN61000-4-11 BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN61000-3-2 BS EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-6 BS EN/EN61000-4-5 BS EN/EN61000-4-8 BS EN/EN61000-4-11
