Mean Well Mean Well logo

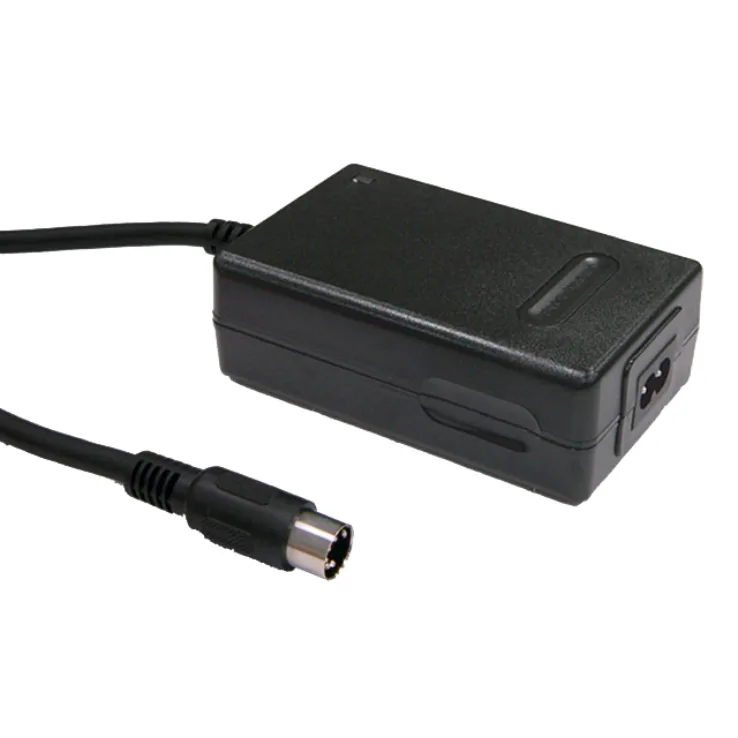

GP25B series External Power Supplies 28–37.77W

Download Datasheet
Models:
  • GP25B13A-R1B
  • GP25B13D-R1B
  • GP25B14E-R1B
  • GP25B58F-R1B(option)
Manufacturer: Mean Well
Type: External Power Supplies

GP25B series Features:

GP25B is a 25W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level VI). Adopting Class II design and utilizing the standard inlet IEC320-C8, it is designed without FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards.

Features:

  • Universal AC input/full range
  • 2 pole AC inlet IEC320-C8, Class II power unit
  • No load power consumption <0.3W
  • Energy efficiency level VI
  • Comply with EISA 2007/DoE
  • Protections: short circuit/ overload/ over voltage
  • Fully enclosed plastic case
  • -20~+70°C working temperature
  • LED indicator for power on
  • Dual output available (optional)
  • ± 16V / +48V also available for video system
  • 3 years warranty
Wattage 28.5 28 29 37.77
Input Voltage 90~264VAC 135~370VDC 90~264VAC 135~370VDC 90~264VAC 135~370VDC 90~264VAC 135~370VDC
Output Current 2.5A, 1.2A, 0.3A 2.5A, 1A, 0.3A 2.5A, 0.8A, 0.3A 1.5A, 0.087A, 1.05A
DC output adjustment 5V, 12V, -12V 5V, 15V, -15V 16V, 48V, -16V
Dimensions 107.5*67*36mm 107.5*67*36mm 107.5*67*36mm 107.5*67*36mm
Working Temperature -20~+70°C
Safety Standards IEC62368-1, UL62368-1, CSA22.2, EN62368-1(Except for GS25B58FR1B) EAC TP TC 004 approved
EMC Standards EN55032(CISPR32), FCC PART 15/CISPR22, CANICES-3(B)NMB-3(B), EN61000-3-2, EN61000-3-3
