MEAN WELL

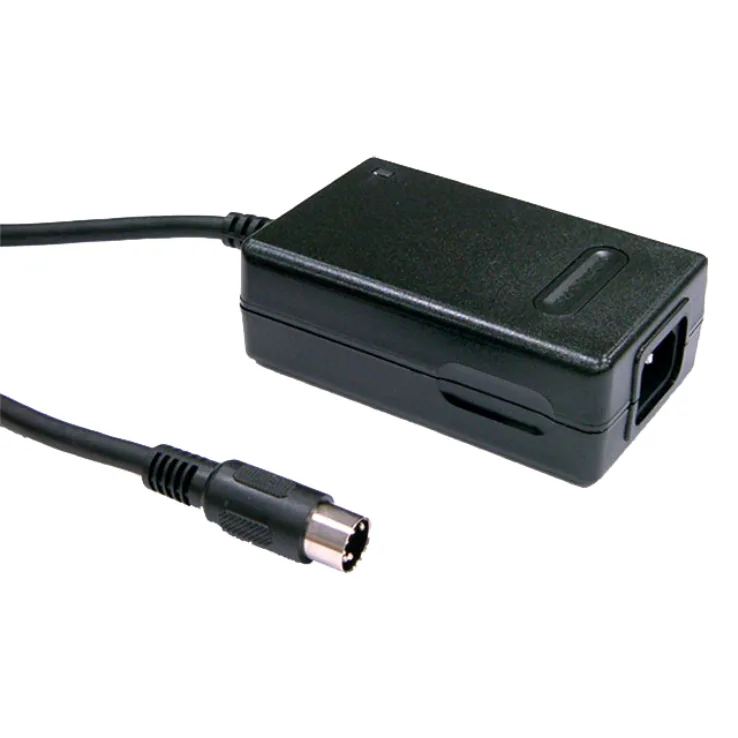

GP25A series External Power Supplies 28–37.7W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | External Power Supplies |
GP25A series Features:
GP25A is a 25W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level VI). Adopting Class I design and utilizing the standard inlet IEC320-C14, it is designed with FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards.
Features:
- Universal AC input/full range
- 3 pole AC inlet IEC320-C14, Class I power unit
- No load power consumption <0.3W
- Energy efficiency level VI
- Comply with EISA 2007/DoE
- Protections: short circuit/ overload/ over voltage
- Fully enclosed plastic case
- -20~+70°C working temperature
- LED indicator for power on
- Dual output available (optional)
- ± 16V / +48V also available for video system (optional, order NO.:GP25A58F-R1B)
- 3 years warranty
| Wattage | 28.5 | 28 | 29 | 37.7 |
|---|---|---|---|---|
| Input Voltage | 90~264VAC 135~370VDC | 90~264VAC 135~370VDC | 90~264VAC 135~370VDC | 90~264VAC 135~370VDC |
| Output Current | 2.5A, 1.2A, 0.3A | 2.5A, 1A, 0.3A | 2.5A, 0.8A, 0.3A | 1.05A, 0.087A, 1.05A |
| DC output adjustment | 5V, 12V, -12V | 5V, 15V, -15V | 16V, 48V, -16V | |
| Dimensions | 107.5*67*36mm | 107.5*67*36mm | 107.5*67*36mm | 107.5*67*36mm |
| Working Temperature | -20~+70°C | |||
| Safety Standards | IEC62368-1, UL62368-1, CSA22.2, EN62368-1(Except for GS25B58FR1B) EAC TP TC 004 approved | |||
| EMC Standards | EN55032(CISPR32), FCC PART 15/CISPR22, CANICES-3(B)NMB-3(B), EN61000-3-2, EN61000-3-3 | |||
