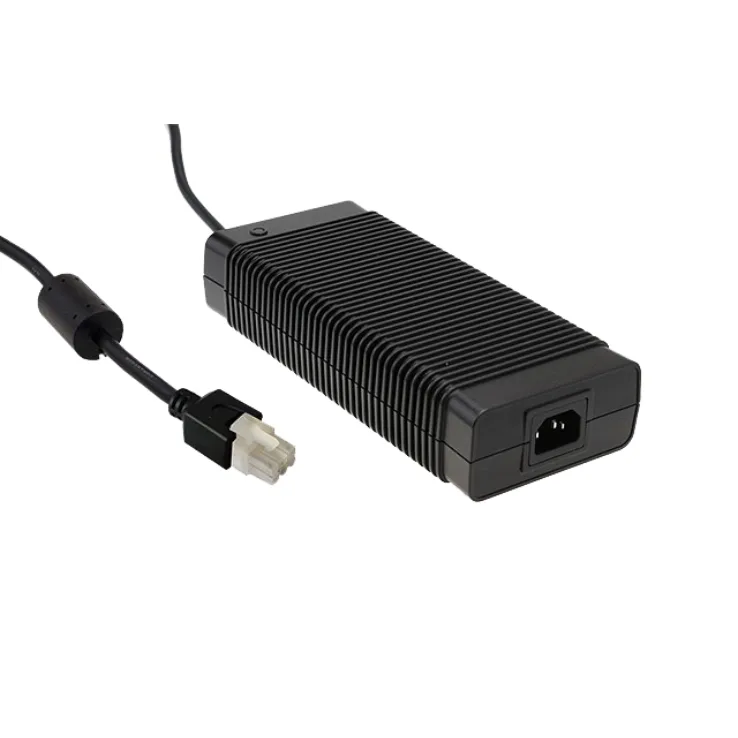

GST360A Series External Power Supplies 330–360W

Download Datasheet
Models:
  • GST360A12-C8P
  • GST360A15-C8P
  • GST360A24-C6P
  • GST360A36-C6P
  • GST360A48-C6P
  • GST360A55-C6P
Manufacturer: MEAN WELL
Type: External Power Supplies

GST360A Series Features:

The GST360A is suitable for commercial equipment, industrial instrument, and other equipment where high efficiency is critical. Common applications include 3D printer, POS system, gaming systems, portable speaker, portable stage lighting, PoE, etc.

Features:

  • Universal 85~264VAC input
  • IEC320-C14 AC inlet (Class I with FG)
  • 450W peak load capability (3s)
  • Fanless design, cooling by free air convection
  • Operating temperature: -30~+70°C
  • No load power consumption< 0.5W
  • Compliance to Level VI international efficiency regulation (EISA 2007/DoE, NRCan)
  • 94V-0 flame retardant plastic enclosure
  • Complete protections: short circuit, overload, over voltage, over temperature
  • Support operation at 5000m altitude
  • Safety approval: CB/ UL/ CUL/ DEKAR/ BSMI/ CCC/ PSE/ KC/ BIS/ EAC/ FCC/ CE/ UKCA
  • Dimensions (L x W x H): 220 x 95 x 46 mm
  • 3 years warrant
Wattage 330 340.5 360 360 360 360
Input Voltage 85~264VAC 85~264VAC 85~264VAC 85~264VAC 85~264VAC 85~264VAC
Output Current 27.5 22.7 15 10 7.5 6.55
Output Voltage 12 15 24 36 48 55
Dimensions 220x95x46mm 220x95x46mm 220x95x46mm 220x95x46mm 220x95x46mm 220x95x46mm
Working Temperature -30~70°C
Safety Standards UL62368-1, CSA C22.2 NO.62368-1, Dekra BS EN/EN62368-1, BSMI CNS14336, CCC GB4943, PSE J62368-1, BIS IS13252, KC 62368-1, EAC TP TC 004 approved
EMC Standards BS EN/EN55032(CISPR32), FCC PART 15/CISPR22 CAN ICES-3(B)/NMB-3(B), CNS13438, GB17625.1 EAC TP TC 020, MSIP KN32
