| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | External Power Supplies |
Description:

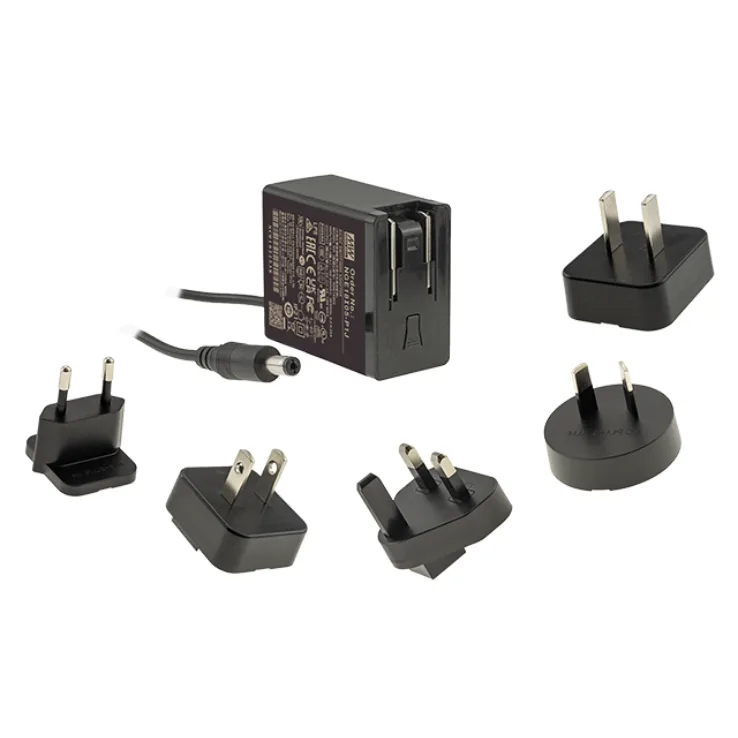

NGE18 is a highly reliable, 18W wall-mounted style single-output green adaptor series, which is compact and convenient for carry.
Features:
MEANWELL Patent Application Number: 202330347779.4
Interchangeable AC plugs
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
Universal AC input / Full range
Ultra slim (28mm)
No load power consumption<0.075W
Energy efficiency Level VI
Class II power (no earth pin)
Protections: Short circuit / Overload / Over voltage
Pass LPS
Extremely leakage current <100uA
-30℃~+70℃
Various DC plug quick adaptor accessory available (plug kit sold separately)
3 years warranty
| Wattage | 15 | 18 | 18 | 18 | 18 | 18 |
| Input Voltage | 80 ~ 264VAC 113 ~ 370VDC | 80 ~ 264VAC 113 ~ 370VDC | 80 ~ 264VAC 113 ~ 370VDC | 80 ~ 264VAC 113 ~ 370VDC | 80 ~ 264VAC 113 ~ 370VDC | 80 ~ 264VAC 113 ~ 370VDC |
| Output Current | 3A | 2A | 1.5A | 1.2A | 1A | 0.75A |
| Output Voltage | 5V | 9V | 12V | 15V | 18V | 24V |
| Dimensions | 48*28*55mm (L*W*H) | 48*28*55mm (L*W*H) | 48*28*55mm (L*W*H) | 48*28*55mm (L*W*H) | 48*28*55mm (L*W*H) | 48*28*55mm (L*W*H) |
| Working Temperature | -30 ~ +70℃ (Refer to "Derating Curve") | |||||
| Safety Standards | CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1； PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved | |||||
| EMC Standards | BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021 BS EN/EN61000-3-2 BS EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-6 BS EN/EN61000-4-5 BS EN/EN61000-4-8 BS EN/EN61000-4-11 | |||||
