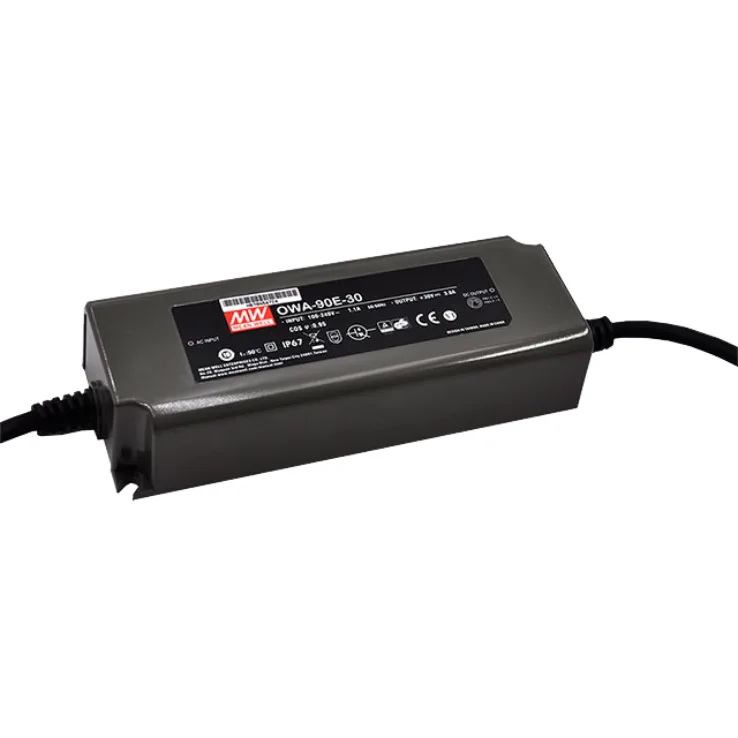

OWA-90E Series External Power Supplies 90W

Download Datasheet
Models:
  • OWA-90E-12
  • OWA-90E-15
  • OWA-90E-20
  • OWA-90E-24
  • OWA-90E-30
  • OWA-90E-36
  • OWA-90E-42
  • OWA-90E-48
  • OWA-90E-54
Manufacturer: Mean Well
Type: External Power Supplies

OWA-90E Series Features:

OWA-90E is a 90W AC/DC class II (without earth pin) external power supply series pinpointing the moisture proof feature. The fully-potted silicone inside the plastic enclosure enhances the heat dissipation; it also benefits that the OWA-90E is approved for IP67 level so that this series specializes the application in which the damp, humidity or dust resistance is needed for the external power supply.

Features:

  • Universal AC input/Full range
  • Built-in active PFC function
  • High efficiency up to 91%
  • No load power consumption <0.15W
  • Energy efficiency Level VI
  • Comply with EU ErP and meet CoC Version 5
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Class II power unit, no FG
  • Fanless design, cooling by free air convection
  • 5 years warranty
Wattage 90 90 90 90 90 90 90 90 90
Input Voltage 90~264 VAC 127~370VDC 90~264 VAC 127~370VDC 90~264 VAC 127~370VDC 90~264 VAC 127~370VDC 90~264 VAC 127~370VDC 90~264 VAC 127~370VDC 90~264 VAC 127~370VDC 90~264 VAC 127~370VDC 90~264 VAC 127~370VDC
Output Current 7.5A 6A 4.5A 3.75A 3A 2.5A 2.15A 1.88A 1.67A
Output Voltage 12V 15V 20V 24V 30V 36V 42V 48V 54V
Dimensions 171*63*37.5 171*63*37.5 171*63*37.5 171*63*37.5 171*63*37.5 171*63*37.5 171*63*37.5 171*63*37.5 171*63*37.5
Working Temperature -40~+70°C
Safety Standards EN61558-1,-2-16 listed; EN60335-1 listed (except for OWA-90E-42,48,54); EAC TP TC 004 approved
EMC Standards Compliance to EN55032 (CISPR32) Class B, EN55014-1, EN61000-3-2, -3; EAC TP TC 020
