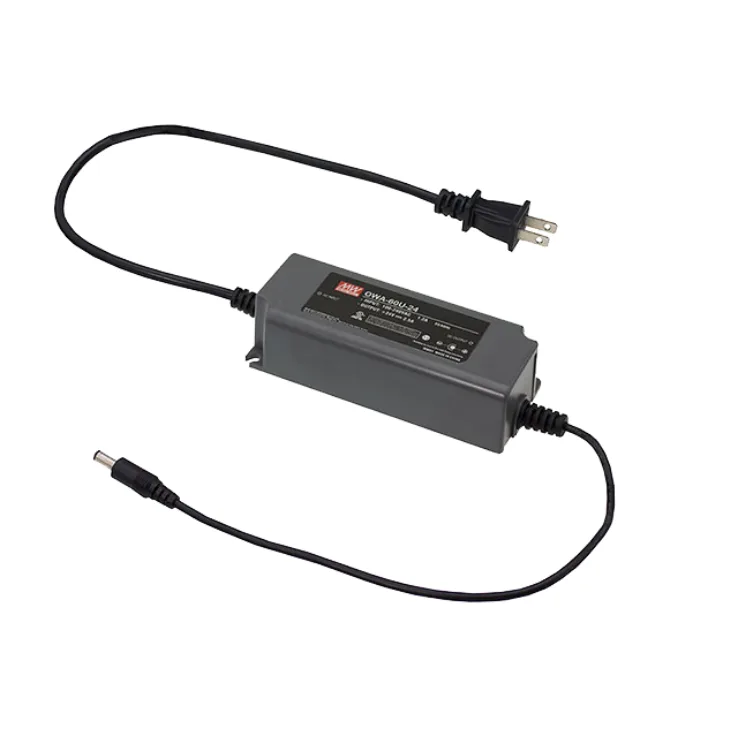

OWA-60U Series External Power Supplies 60W

Models:	OWA-60U-12 OWA-60U-15 OWA-60U-20 OWA-60U-24 OWA-60U-30 OWA-60U-36 OWA-60U-42 OWA-60U-48 OWA-60U-54
Manufacturer:	MEAN WELL
Type:	External Power Supplies

OWA-60U Series Features:

OWA-60U is one 60W single-output external LED power supply series. Pairing then North American type of AC plug and the prevailing DC connectors, OWA-60U, working like an adaptor, simplifies the connection with LED lighting fixtures without extra wiring efforts.

Features:

Universal AC input / Full range
High efficiency up to 91%
Protections: Short circuit / Over current / Over voltage / Over temperature
Class II power unit, no FG
Class 2 power unit
Fully isolated plastic case
Fanless design, cooling by free air convection
No load power consumption <0.15W
Comply with EISA 2007 DoE and NRCan
UL LISTED, suitable for dry and damp locations
5 years warranty

Spec	OWA-60U-12	OWA-60U-15	OWA-60U-20	OWA-60U-24	OWA-60U-30	OWA-60U-36	OWA-60U-42	OWA-60U-48	OWA-60U-54
Wattage	60	60	60	60	60	60	60	60	60
Input Voltage	90~264VAC 127~370VDC	90~264VAC 127~370VDC	90~264VAC 127~370VDC	90~264VAC 127~370VDC	90~264VAC 127~370VDC	90~264VAC 127~370VDC	90~264VAC 127~370VDC	90~264VAC 127~370VDC	90~264VAC 127~370VDC
Output Current	5A	4A	3A	2.5A	2A	1.67A	1.25A	1.25A	1.12A
Output Voltage	12V	15V	20V	24V	30V	36V	42V	48V	54V
Dimensions	1305335mm	1305335mm	1305335mm	1305335mm	1305335mm	1305335mm	1305335mm	1305335mm	1305335mm
Working Temperature	-40~+80°C
Safety Standards	UL8750 listed, CSA C22.2 No.250-13-12(except for 42V,48V,54V);IP67 approved for power body
EMC Standards	Compliance to FCC Part15
