MEAN WELL

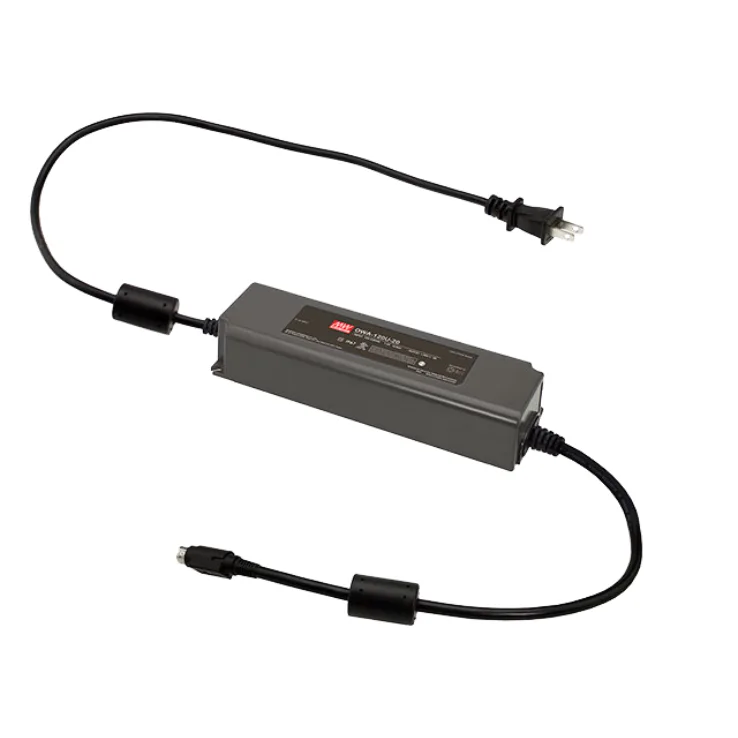

OWA-120U Series External Power Supplies 120–124.2W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | External Power Supplies |
OWA-120U Series Features:
OWA-120U is one 120W single-output external LED power supply series. Pairing the North American type of AC plug and prevailing DC connectors, OWA-120U, working like an adaptor, simplifies the connection with LED lighting fixtures without extra wiring efforts.
Features:
- Universal AC input/ full range
- Class II power unit, no FG
- Built-in active PFC function
- High efficiency up to 90.5%
- No load power consumption <0.15W
- Energy efficiency level VI
- Comply with EISA 2007/DoE, NRCan
- Fully isolated plastic case
- Fanless design, cooling by free air convection
- Protections: Short circuit / Over current / Over voltage / Over temperature
- UL LISTED, suitable for dry and damp locations
- 5 years warranty
| Wattage | 120 | 120 | 120 | 120 | 120 | 122.4 | 121.8 | 120 | 124.2 |
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 90~264 VAC 127-370VDC | 90~264 VAC 127-370VDC | 90~264 VAC 127-370VDC | 90~264 VAC 127-370VDC | 90~264 VAC 127-370VDC | 90~264 VAC 127-370VDC | 90~264 VAC 127-370VDC | 90~264 VAC 127-370VDC | 90~264 VAC 127-370VDC |
| Output Current | 10A | 8A | 6A | 5A | 4A | 3.4A | 2.9A | 2.5A | 2.3A |
| Output Voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| Dimensions | 191*63*37.5mm | 191*63*37.5mm | 191*63*37.5mm | 191*63*37.5mm | 191*63*37.5mm | 191*63*37.5mm | 191*63*37.5mm | 191*63*37.5mm | 191*63*37.5mm |
| Working Temperature | -40~+70°C | ||||||||
| Safety Standards | UL8750 listed, CSA C22.2 No.250.13-12; IP67 (for power body) approved | ||||||||
| EMC Standards | Compliance to FCC Part15 | ||||||||
