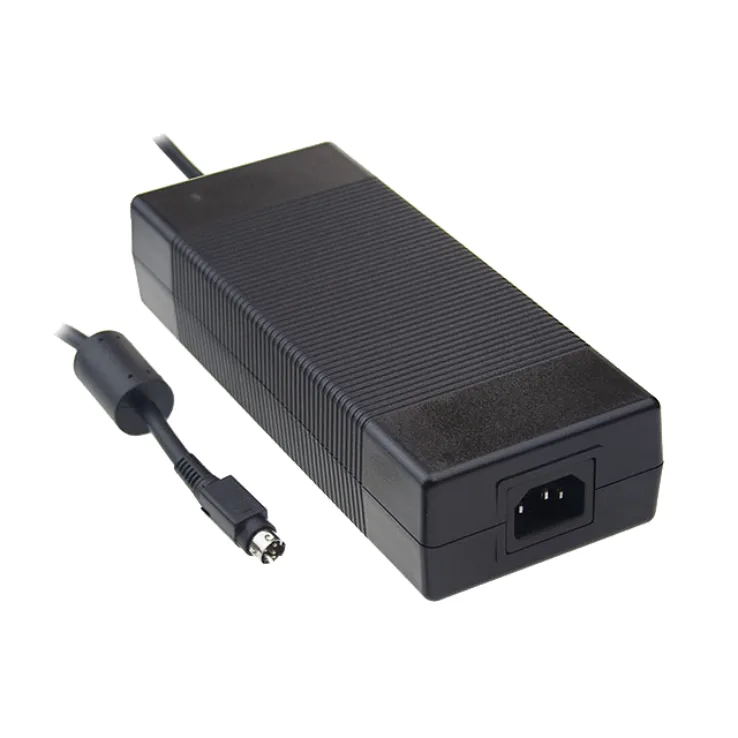

Mean Well GST220A Series External Power Supplies 180–221W

Download Datasheet
Models:
  • GST220A12
  • GST220A15
  • GST220A20
  • GST220A24
  • GST220A48
Manufacturer: Mean Well
Type: External Power Supplies

GST220A Series Features:

>

Fanless design with -30~+70°C working temperature

No load power consumption <0.15W

Protections: Short circuit / Overload / Over voltage

Other features:

  • Universal AC input/full range
  • 3 pole AC inlet IEC320-C14
  • Built-in active PFC function
  • Energy efficiency level VI
  • Fully enclosed plastic case
  • Class I power (without earth pin)
  • Meet EISA 2007
  • 3 years warranty
Wattage 180 201 220 221 221
Input Voltage 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC
Output Current 15A 13.4A 11A 9.2A 4.6A
Output Voltage 12 15 20 24 48
Output Voltage Options Single Single Single Single Single
DC output adjustment 120-370V 120-370V 120-370V 120-370V 120-370V
Dimensions 210x 85x 46 210x 85x 46 210x 85x 46 210x 85x 46 210x 85x 46
Working Temperature -30B0C-+70B0C
Safety Standards UL60950-1, CSA C22.2, TUV EN60950-1, BMSI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS 60950.1 approved
EMC Standards Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)/NWB-3(B),CNS13438 class B, GB9254, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11 light industry level, criteria A
