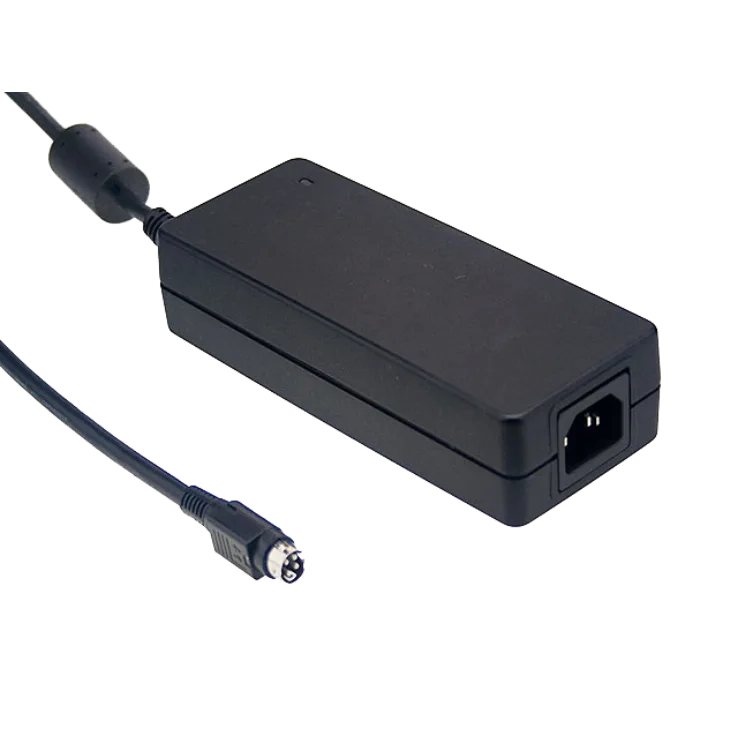

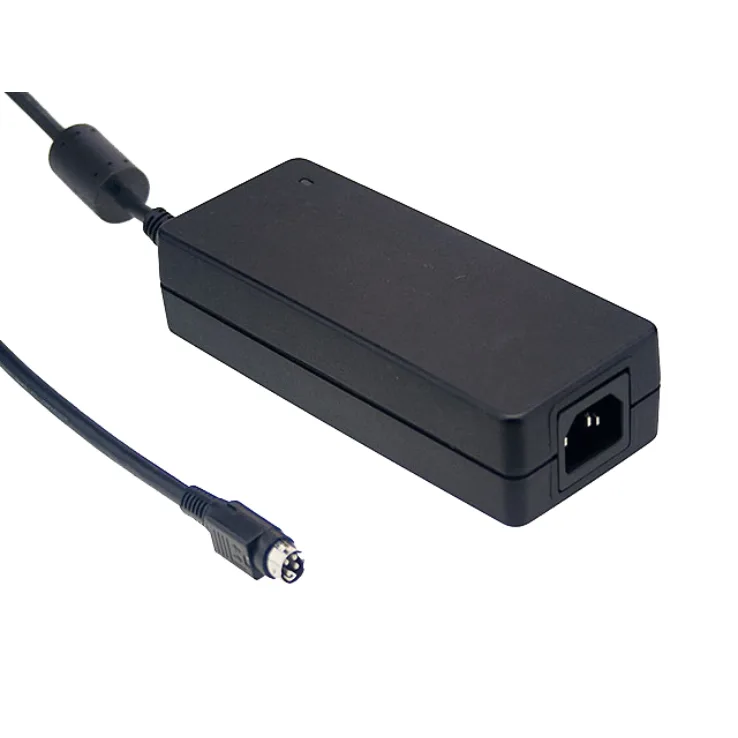

GST120A Series External Power Supplies 120W

Models:	GST120A12-R7B GST120A15-R7B GST120A20-P1M GST120A20-R7B GST120A24-P1M GST120A24-R7B GST120A48-P1M GST120A48-R7B
Manufacturer:	MEAN WELL
Type:	External Power Supplies

GST120A Series Features:

Global certificates

3 pole AC inlet IEC320-C14,Class I power unit

Other features:

Built-in active PFC function
Energy efficiency Level VI
Comply with EISA 2007/DoE,NRCan,Korea K-MEPS,AU/NZ MEPS,EU ErP and CoC Version 5
Protections: Short circuit/Overload/Over voltage/Over temperature
3 years warranty

Spec	GST120A12-R7B	GST120A15-R7B	GST120A20-P1M	GST120A20-R7B	GST120A24-P1M	GST120A24-R7B	GST120A48-P1M	GST120A48-R7B
Wattage	120	120	120	120	120	120	120	120
Input Voltage	85-264VAC, 120-370VDC	85-264VAC, 120-370VDC	85-264VAC, 120-370VDC	85-264VAC, 120-370VDC	85-264VAC, 120-370VDC	85-264VAC, 120-370VDC	85-264VAC, 120-370VDC	85-264VAC, 120-370VDC
Output Current	8.5A	7A	6A	6A	5A	5A	2.5A	2.5A
Output Voltage	12	15	20	20	24	24	48	48
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single
Dimensions	167 x 67 x 35	167 x 67 x 35	167 x 67 x 35	167 x 67 x 35	167 x 67 x 35	167 x 67 x 35	167 x 67 x 35	167 x 67 x 35
Working Temperature	-30C - +70°C
Safety Standards	UL62368-1, CSA C22.2 No. 62368-1, TUV EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J60950-1,,AS/NZS 60950.1, BIS IS13252, KC K60950-1,EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved, I/P-O/P: 3KVAC, I/P-O/P:100M Ohms / 500VDC / 25C/ 70% RH
EMC Standards	EN55032(CISPR32),FCC PART 15 / CISPR22CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1EAC TP TC 020,MSIP KN32, EN61000-3-2,GB9254, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
