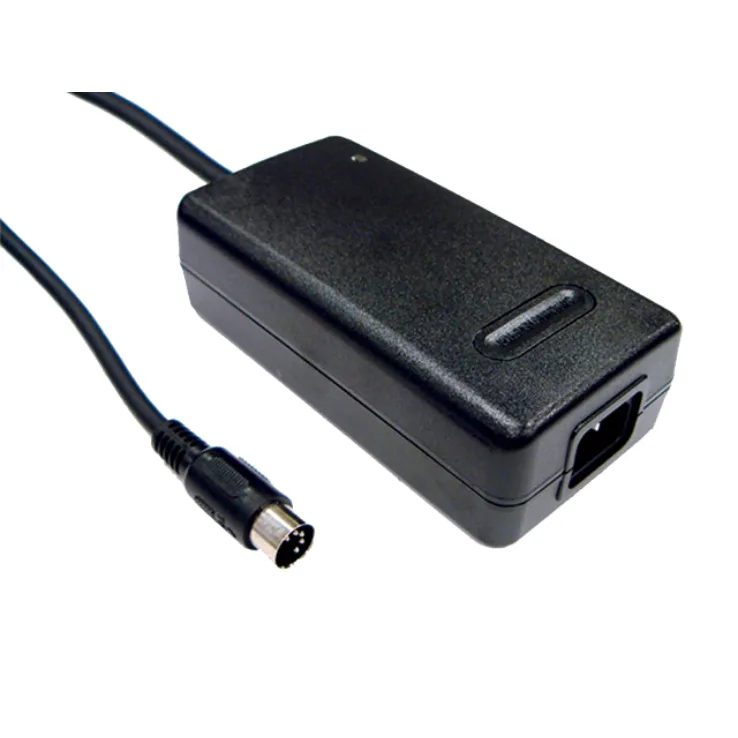

GP50A series External Power Supplies 46.5–71.2W

Models:	GP50A13A-R1B GP50A13D-R1B GP50A14E-R1B GP50A58F-R1B(option)
Manufacturer:	MEAN WELL
Type:	External Power Supplies

GP50A series Features:

GP50A is a 50W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level VI). Adopting Class I design and utilizing the standard inlet IEC320-C14, it is designed with FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards.

Features:

Universal AC input/full range
3 pole AC inlet IEC320-C14, Class I power unit
No load power consumption <0.3W
Energy efficiency level VI
Comply with EISA 2007/DoE
Protections: short circuit/ overload/ over voltage
-20~+70°C working temperature
LED indicator for power on
Dual output available (optional)
± 16V / +48V also available for video system (optional, order NO. : GP50A58F-R1B)
3 years warranty

Spec	GP50A13A-R1B	GP50A13D-R1B	GP50A14E-R1B	GP50A58F-R1B(option)
Wattage	46.5	50	50	71.2
Input Voltage	90~264VAC 135~370VDC	90~264VAC 135~370VDC	90~264VAC 135~370VDC	90~264VAC 135~370VDC
Output Current	4A, 2A, 0.5A	4A, 2A, 0.5A	4A, 1.5A, 0.5A	2A, 0.15A, 2A
DC output adjustment	5V, 12V, -5V	5V, 12V, -12V	5V, 15V, -15V	16V, 48V, -16V
Dimensions	14675.543mm	14675.543mm	14675.543mm	14675.543mm
Working Temperature	-20~+70°C
Safety Standards	IEC62368-2, UL62368-1, CSA22.2, EN62368-1(Except for GP50A58F-R1B), EAC TP TC 004 approved
EMC Standards	EN55032(CISPR32), FCC PART 15/CISPR22, CANICES-3(B)NMB-3)B), EN61000-3-2, EN61000-3-3
