MEAN WELL

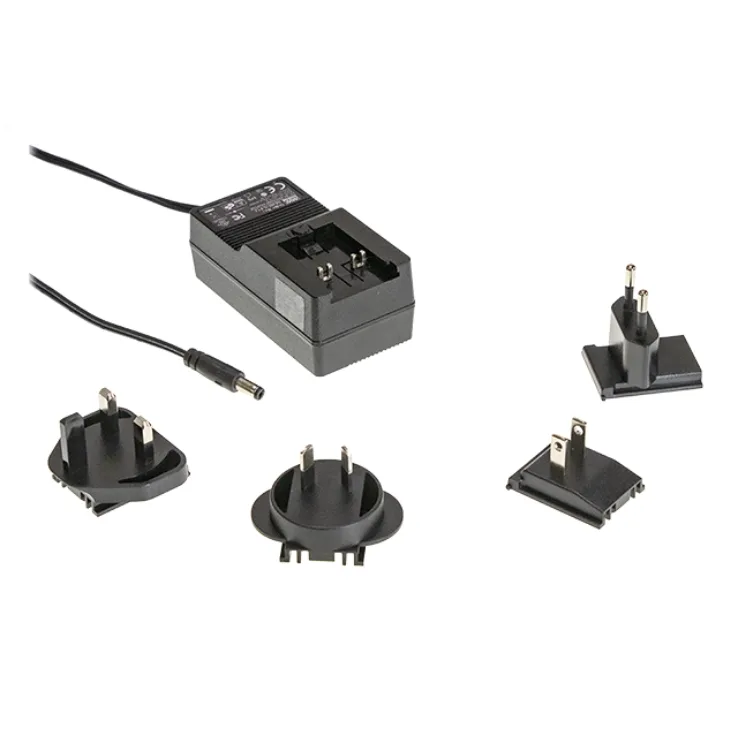

GE40I-P1J External Power Supplies 1W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | External Power Supplies |
GE40I-P1J Features:
Interchangeable AC plugs (plug kit sold sperately)
Universal AC input / Full range
Other features:
- No load power consumption< 0.075W
- Energy efficiency LevelVI
- Comply with EISA 2007/DoE, EU ErP and meet CoC version 5
- Protections: Short circuit / Overload / Over voltage
- 2 years warranty
| Wattage | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 90-264VAC, 135-370VDC | 90-264VAC, 135-370VDC | 90-264VAC, 135-370VDC | 90-264VAC, 135-370VDC | 90-264VAC, 135-370VDC | 90-264VAC, 135-370VDC | 90-264VAC, 135-370VDC | 90-264VAC, 135-370VDC | 90-264VAC, 135-370VDC |
| Output Current | 0-42mA | 0-34mA | 0-42mA | 0-34mA | 0-42mA | 0-34mA | 0-34mA | 0-42mA | 0-34mA |
| Output Voltage | 5V | 7V | 9V | 12V | 15V | 18V | 24V | 36V | 48V |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single |
| DC output adjustment | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions | 94 x 48.4 x 40 | 94 x 48.4 x 40 | 94 x 48.4 x 40 | 94 x 48.4 x 40 | 94 x 48.4 x 40 | 94 x 48.4 x 40 | 94 x 48.4 x 40 | 94 x 48.4 x 40 | 94 x 48.4 x 40 |
| Working Temperature | -30 - +70°C | ||||||||
| Safety Standards | UL62368-1, CSA C22.2, TUV EN62368-1, AS/NZS 60950.1, CCC GB4943.1,approved | ||||||||
| EMC Standards | EN55032(CISPR32), EN61000-4-2,3,4,5,6,8 | ||||||||
