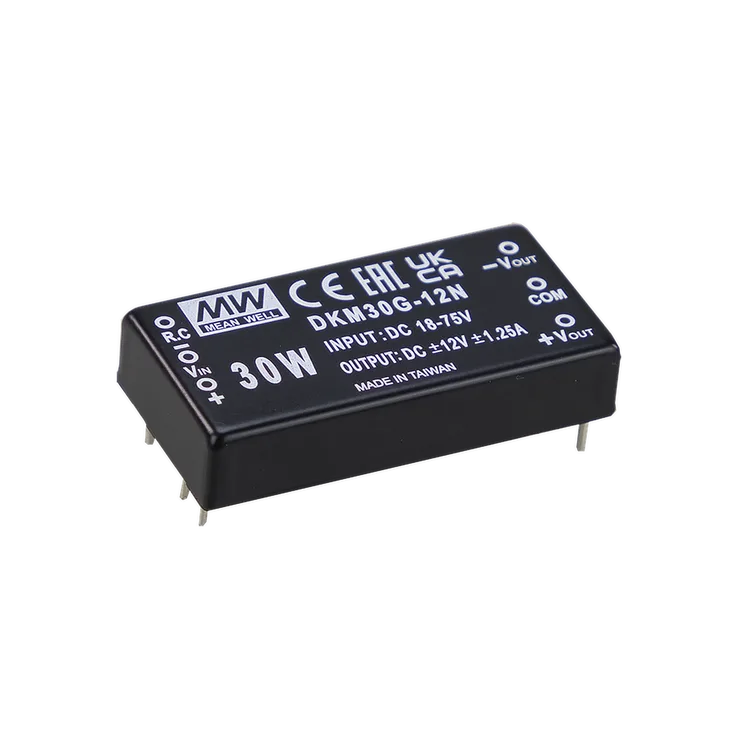

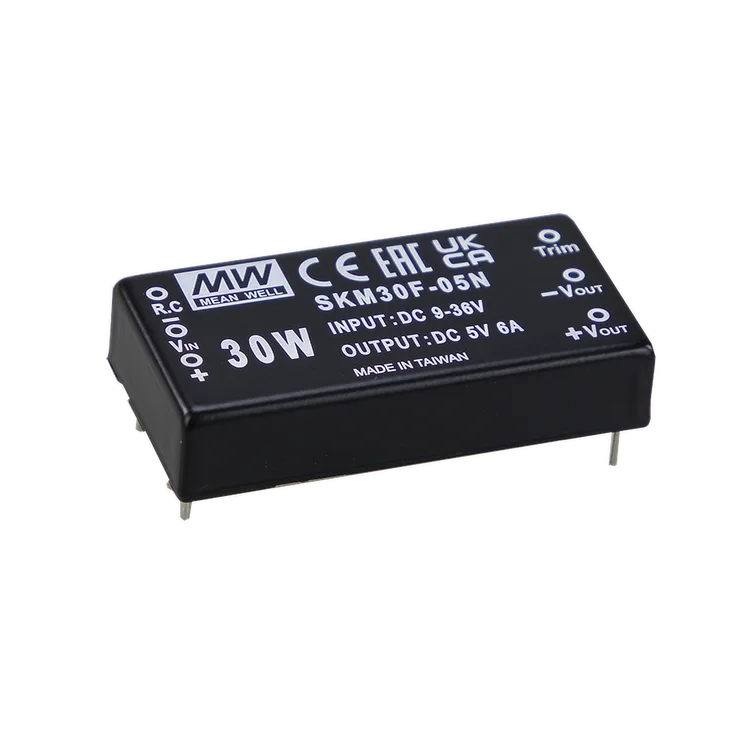

SKM30-N & DKM30-N DC-DC Power Supplies 30W

Download Datasheet
Models:
  • SKM30F-05N
  • SKM30F-12N
  • SKM30F-15N
  • DKM30F-12N
  • DKM30F-15N
  • SKM30G-05N
  • SKM30G-12N
  • SKM30G-15N
  • DKM30G-12N
  • DKM30G-15N
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

SKM30-N & DKM30-N Features:

Features:

  • 2”x 1”packaging, industrial standard pin-out
  • 4:1 wide input voltage range
  • Free air convection, can operate between -40~+90oC(+60oC@full load no derating)
  • Meeting EN55032 Class A EMI performance without external components
  • No minimum load requirement
  • Built-in remote ON/OFF and output trimming (±10%)
  • Protections: short circuit, overload, over voltage
  • Dimensions (LxWxH): 50.8x 25.4 x 11.2mm
  • Approvals: EAC/ CE/ UKCA
  • 3 years warranty
Wattage 30 30 30 30 30 30 30 30 30 30
Input Voltage 9~36Vdc 9~36Vdc 9~36Vdc 9~36Vdc 9~36Vdc 18~75Vdc 18~75Vdc 18~75Vdc 18~75Vdc 18~75Vdc
Output Current 0~6000mA 0~2500mA 0~2000mA ±0~1250mA ±0~1000mA 0~6000mA 0~2500mA 0~2000mA ±0~1250mA ±0~1000mA
Output Voltage 5 12 15 ±12 ±15 5 12 15 ±12 ±15
Dimensions 50.8x25.4x11.2mm 50.8x25.4x11.2mm 50.8x25.4x11.2mm 50.8x25.4x11.2mm 50.8x25.4x11.2mm 50.8x25.4x11.2mm 50.8x25.4x11.2mm 50.8x25.4x11.2mm 50.8x25.4x11.2mm 50.8x25.4x11.2mm
Working Temperature -40 ~ 90℃ (Refer to "Derating Curve")
Safety Standards EAC TP TC 020/2011 approved
EMC Standards BS EN/EN55032(CISPR32)
