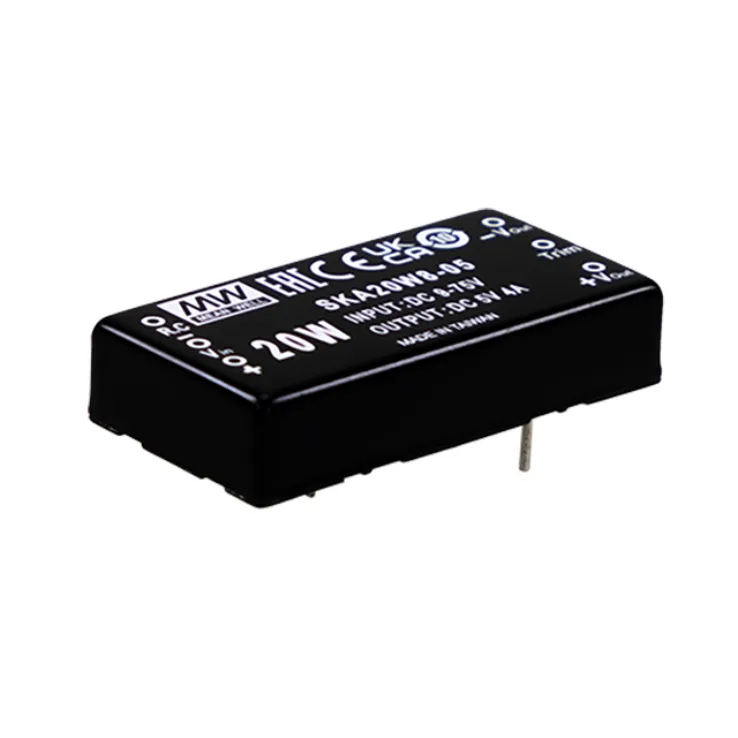

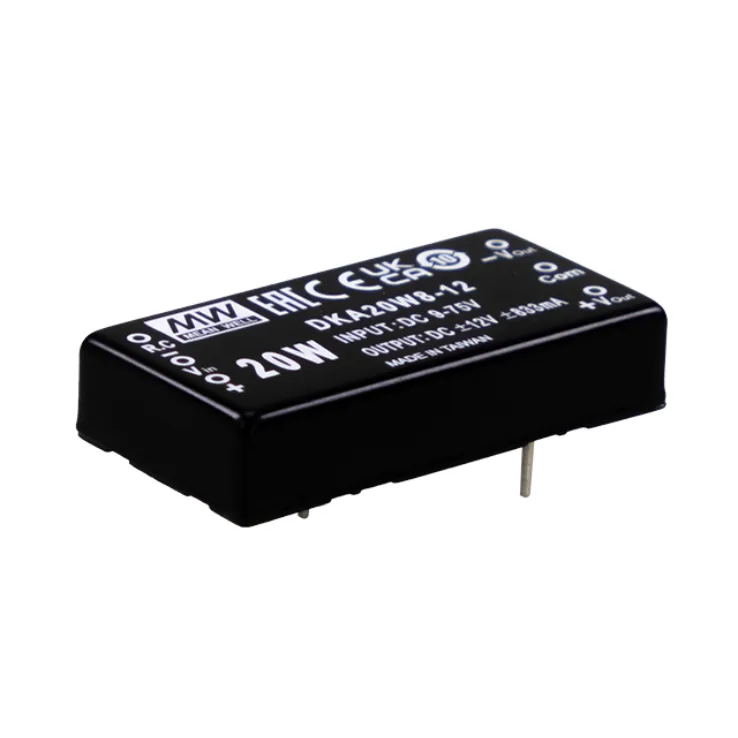

SKA20W8 & DKA20W8 series DC-DC Power Supplies 20W

Download Datasheet
Models:
  • SKA20W8-03
  • SKA20W8-05
  • SKA20W8-12
  • SKA20W8-15
  • SKA20W8-24
  • DKA20W8-05
  • DKA20W8-15
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

SKA20W8 & DKA20W8 series Features:

Features

    • DIP 2"x1" package with industry standard pinout
    • 8:1 (9~75Vdc) ultra-wide input range
    • Operating temperature range -40 ~ +90°C
    • No minimum load required
    • Comply to BS EN/EN55032 radiated Class A without additional components
    • High efficiency up to 89%
    • Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
    • 3KVdc I/O isolation
    • Remote ON/OFF control
    • 3 years warranty
Wattage 20 20 20 20 20 20 20
Input Voltage 9~75Vdc 9~75Vdc 9~75Vdc 9~75Vdc 9~75Vdc 9~75Vdc 9~75Vdc
Output Current 0-5000mA 0-4000mA 0-1666A 0-1333mA 0-833mA ±0~833mA ±0~666mA
Output Voltage 3.3V 5V 12V 15V 24V ±12V ±15V
Dimensions 50.8*25.4*11.2mm (2*1*0.44 inch) 50.8*25.4*11.2mm (2*1*0.44 inch) 50.8*25.4*11.2mm (2*1*0.44 inch) 50.8*25.4*11.2mm (2*1*0.44 inch) 50.8*25.4*11.2mm (2*1*0.44 inch) 50.8*25.4*11.2mm (2*1*0.44 inch) 50.8*25.4*11.2mm (2*1*0.44 inch)
Working Temperature -40 ~ +90℃ (Refer to "Derating Curve")
Safety Standards EAC TP TC 020/2011 approved
EMC Standards BS EN/EN55032(CISPR32)
