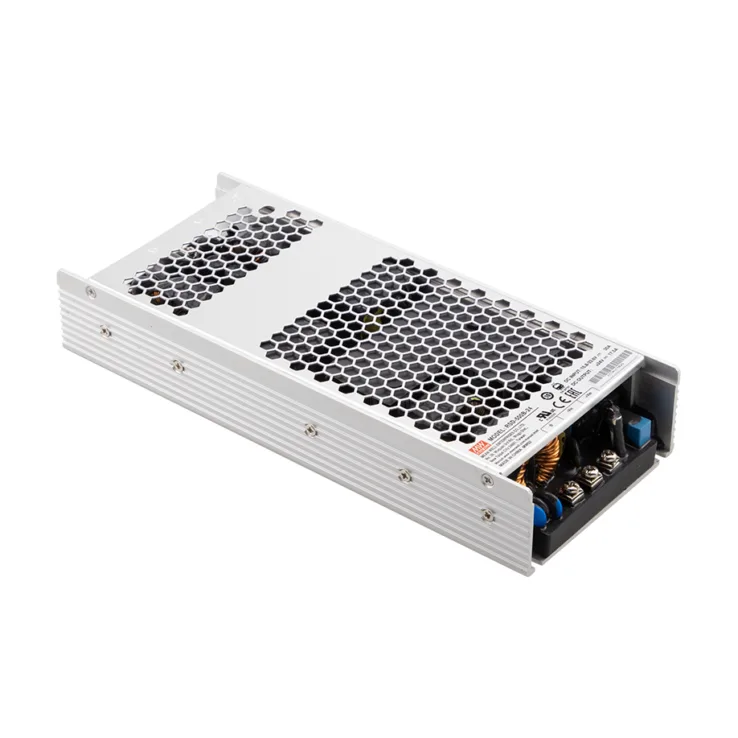

RSD-500 Series DC-DC Power Supplies 420–499.2W

Download Datasheet
Models:
  • RSD-500B-12
  • RSD-500B-24
  • RSD-500B-48
  • RSD-500C-12
  • RSD-500C-24
  • RSD-500C-48
  • RSD-500D-12
  • RSD-500D-24
  • RSD-500D-48
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

RSD-500 Series Features:

RSD-500 Series is a 500W enclosed type reliable railway DC-DC converter.

Features:
Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
1U low profile 41mm
2:1 wide input range
Fanless design, half encapsulated, cooling by free air convection
-40 ~ +80℃ wide operating temperature
DC output adjustable
Protections: Short Circuit / Overload / Over voltage / Over temperature / Input reverse polarity / Input under voltage protection
4KDdc I/O isolation (Reinforced isolation)
Operating additude up to 5000 meters
LED indicator for power on
3 years warranty

Wattage 420 420 422.4 420 460.8 460.8 420 499.2 499.2
Input Voltage 16.8 ~33.6Vdc 16.8 ~ 33.6Vdc 16.8 ~ 33.6Vdc 33.6 ~ 67.2Vdc 33.6 ~ 67.2Vdc 33.6 ~ 67.2Vdc 67.2 ~ 154Vdc 67.2 ~ 154Vdc 67.2 ~ 154Vdc
Output Current 35a 17.5A 8.8A 35A 19.2A 9.6A 35A 20.8A 10.4A
Output Voltage 12v 24V 48V 12V 24V 48V 12V 24V 48V
Dimensions 237*100*41mm (L*W*H) 237*100*41mm (L*W*H) 237*100*41mm (L*W*H) 237*100*41mm (L*W*H) 237*100*41mm (L*W*H) 237*100*41mm (L*W*H) 237*100*41mm (L*W*H) 237*100*41mm (L*W*H) 237*100*41mm (L*W*H)
Working Temperature -40 ~ +80 (Refer to "Derating Curve")
Safety Standards UL62368-1, IEC 62368-1, approved AS/NZS 62368-1, EAC TP TC 004 , Design refer to BS EN/EN62368-1
EMC Standards BS EN/EN55032 (CISRP32), BS EN/EN55032 (CISRP32), BS EN/EN61000-3-3, BS EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-5 BS EN/EN61000-4-6 BS EN/EN61000-4-8
