| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |

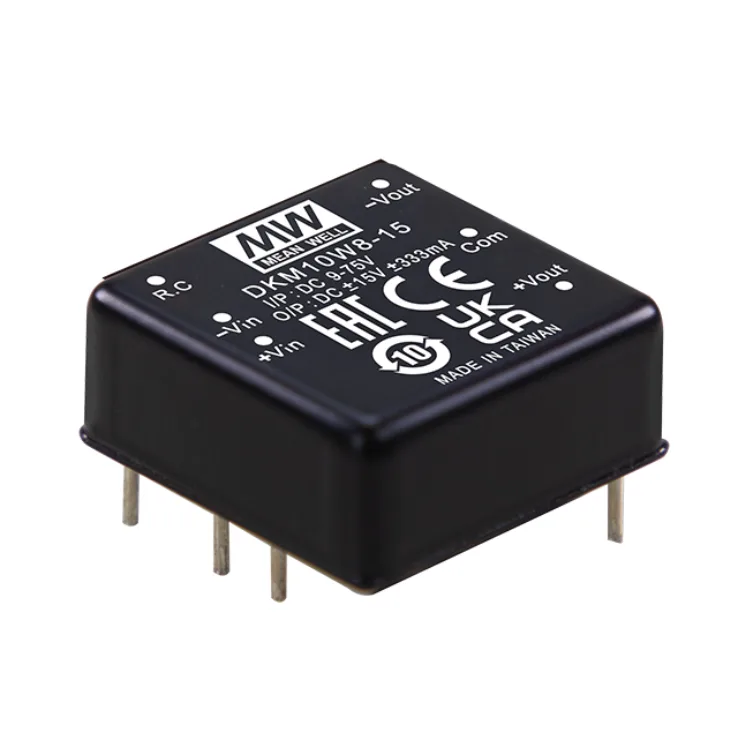

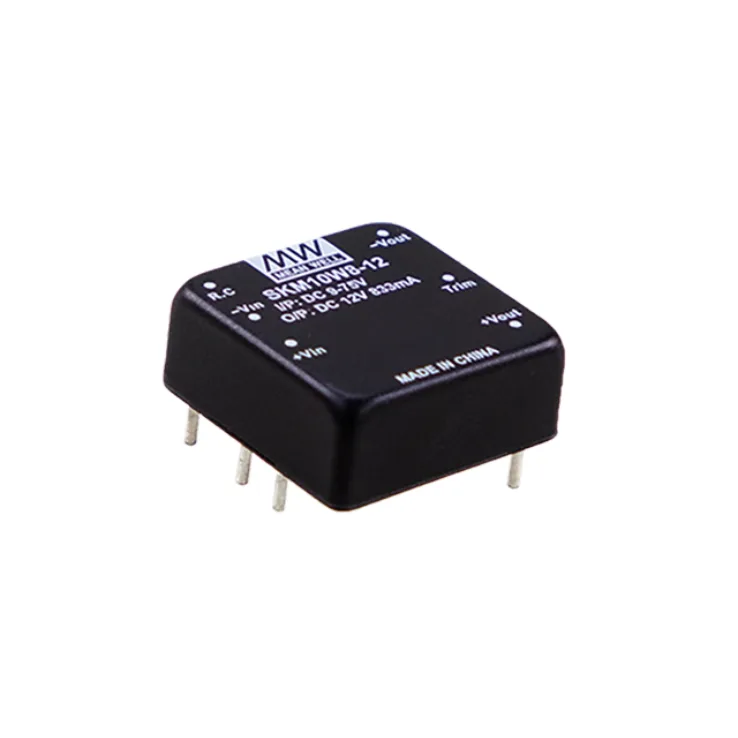

Features
• DIP 1"x1" package with industry standard pinout
• 8:1 (9~75Vdc) ultra-wide input range
• Operating temperature range -40 ~ +90°C
• No minimum load required
• High efficiency up to 85%
• Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
• 3KVdc I/O isolation
• Remote ON/OFF control
• Timing output (±10%)
• 3 years warranty
| Wattage | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Input Voltage | 9 ~ 75V | 9 ~ 75V | 9 ~ 75V | 9 ~ 75V | 9 ~ 75V | 9 ~ 75V | 9 ~ 75V |
| Output Current | 0~2500mA | 0~2000mA | 0~833mA | 0~666mA | ±0~1000mA | ±0~417mA | ±0~330mA |
| Output Voltage | 3.3V | 5V | 12V | 15V | ±12V | ±12V | ±15V |
| Dimensions | 25.4*25.4*10.2mm (1*1*0.4 inch) | 25.4*25.4*10.2mm (1*1*0.4 inch) | 25.4*25.4*10.2mm (1*1*0.4 inch) | 25.4*25.4*10.2mm (1*1*0.4 inch) | 25.4*25.4*10.2mm (1*1*0.4 inch) | 25.4*25.4*10.2mm (1*1*0.4 inch) | 25.4*25.4*10.2mm (1*1*0.4 inch) |
| Working Temperature | -40 ~ +90℃ (Refer to "Derating Curve") | ||||||
| Safety Standards | EAC TP TC 020/2011 approved | ||||||
| EMC Standards | BS EN/EN55032 | ||||||
