| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |

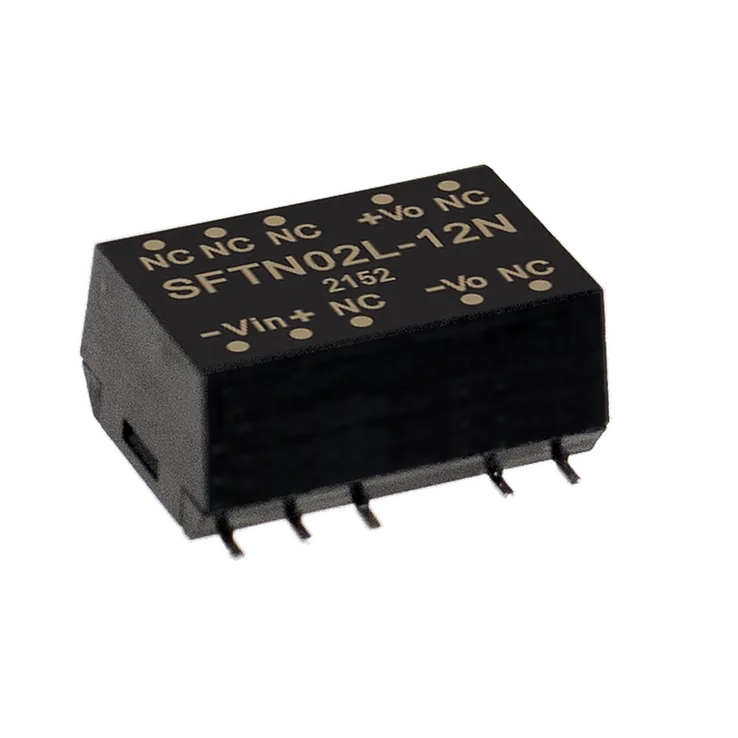

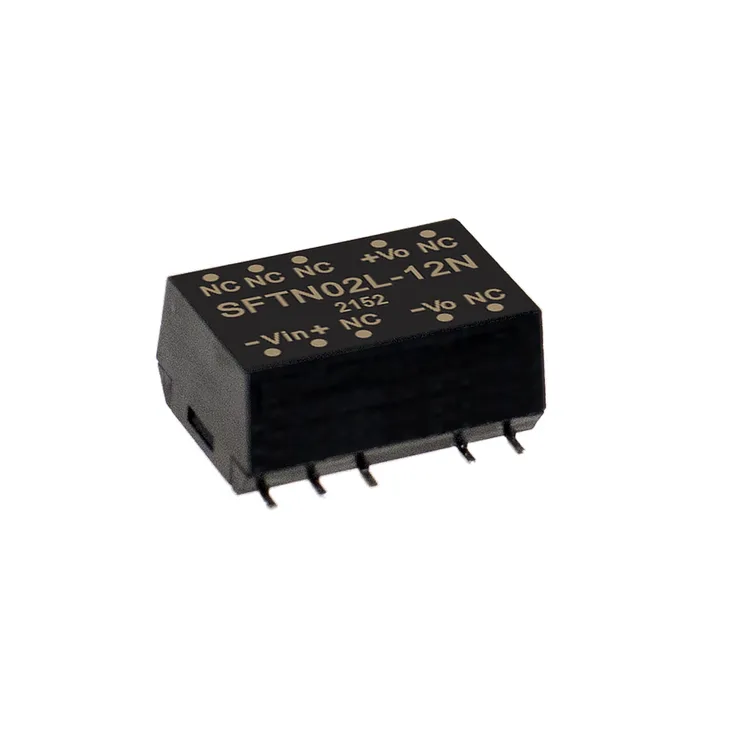

SFTN02-N series is 2W isolated and unregulated module type DC-DC converter with SMD package.
Features:
| Wattage | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Input Voltage | 4.5~5.5 | 4.5~5.5 | 4.5~5.5 | 10.8~13.2 | 10.8~13.2 | 10.8~13.2 | 21.6~26.4 | 21.6~26.4 | 21.6~26.4 |
| Output Current | 40~400mA | 33~167mA | 27~133mA | 40~400mA | 33~167mA | 27~133mA | 40~400mA | 33~167mA | 27~133mA |
| Output Voltage | 5 | 12 | 15 | 5 | 12 | 15 | 5 | 12 | 15 |
| Dimensions | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm |
| Working Temperature | -40~85°C | ||||||||
| Safety Standards | EAC TP TC 004 approved | ||||||||
| EMC Standards | BS EN/EN55032(CISPR32) | ||||||||
