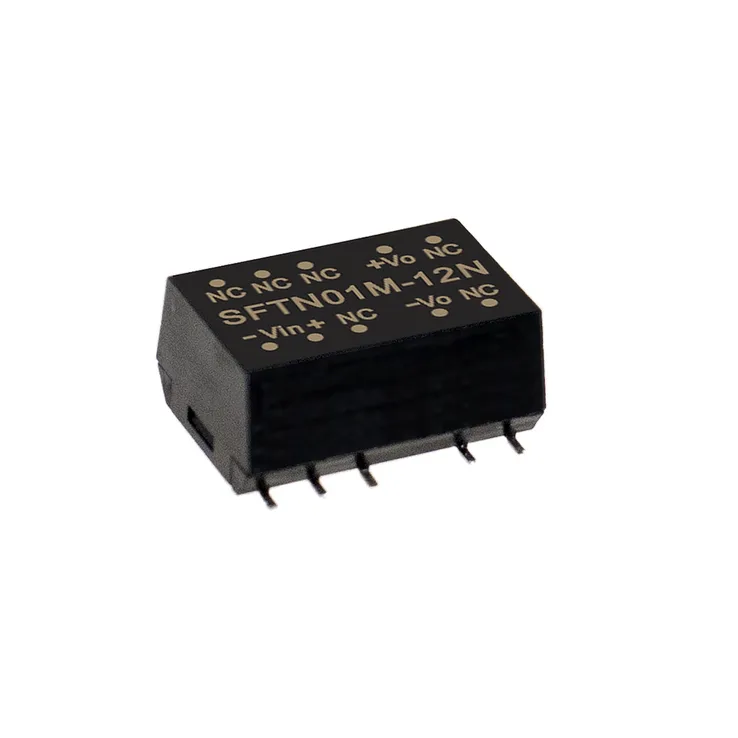

SFTN01-N Series DC-DC Power Supplies 1W

Download Datasheet
Models:
  • SFTN01L-05N
  • SFTN01L-09N
  • SFTN01L-12N
  • SFTN01L-15N
  • SFTN01M-05N
  • SFTN01M-09N
  • SFTN01M-12N
  • SFTN01M-15N
  • SFTN01N-05N
  • SFTN01N-09N
  • SFTN01N-12N
  • SFTN01N-15N
Manufacturer: Mean Well
Type: DC-DC Power Supplies

SFTN01-N Series Features:

SFTN01-N series is 1 W isolated and unregulated module type DC-DC converter with SMD package.

Features:

  • SMD package with industry standard pinout
  • Operating temperature range -40~100°C
  • High efficiency up to 82%
  • 3KVDC I/O isolation
  • Low cost
  • 3.3Vo models available
  • 3 years warranty
Wattage 1 1 1 1 1 1 1 1 1 1 1 1
Input Voltage 4.5~5.5 4.5~5.5 4.5~5.5 4.5~5.5 10.8~13.2 10.8~13.2 10.8~13.2 10.8~13.2 21.6~26.4 21.6~26.4 21.6~26.4 21.6~26.4
Output Current 20~200mA 11.1~111mA 8.4~84mA 6.7~67mA 20~200mA 9 8.4~84mA 15 20~200mA 11.1~111mA 8.4~84mA 6.7~67mA
Output Voltage 5 9 5 5 9 12 15
Dimensions 15.24x10.9x7.1mm 15.24x10.9x7.1mm 15.24x10.9x7.1mm 15.24x10.9x7.1mm 15.24x10.9x7.1mm 15.24x10.9x7.1mm 15.24x10.9x7.1mm 15.24x10.9x7.1mm 15.24x10.9x7.1mm 15.24x10.9x7.1mm 15.24x10.9x7.1mm 15.24x10.9x7.1mm
Working Temperature -40~100°C
Safety Standards EAC TP TC 004 approved
EMC Standards BS EN/EN55032(CISPR32)
