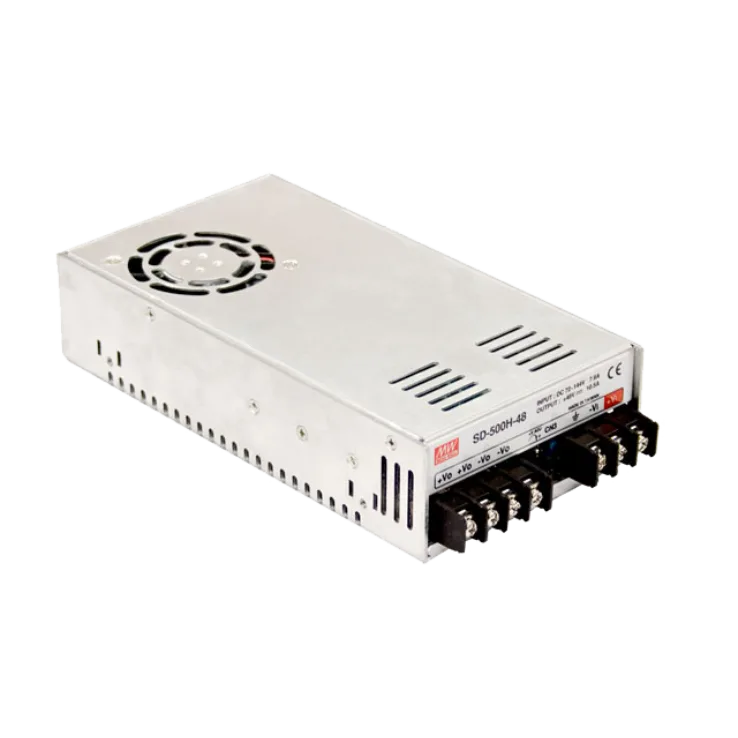

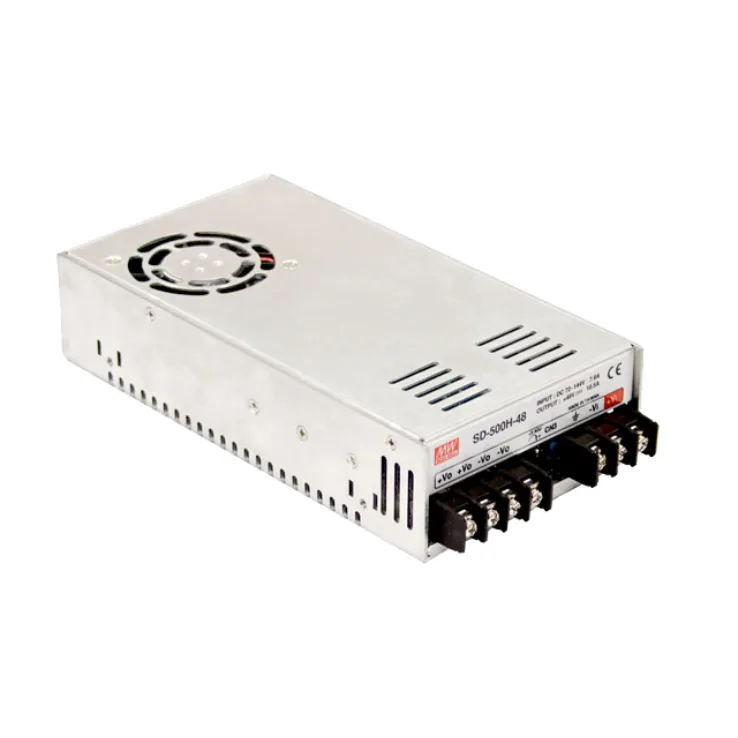

SD-500 Series DC-DC Power Supplies 480–504W

Download Datasheet
Models:
  • SD-500L-12
  • SD-500L-24
  • SD-500L-48
  • SD-500H-12
  • SD-500H-24
  • SD-500H-48
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

SD-500 Series Features:

4:1 & 2:1 DC Input range

Protections: Short Circuit / Overload / Over voltage / Over temp / Input polarity

Other Features:

  • DC input active surge current limiting
  • 2000VAC I/O Isolation
  • Forced air cooling by built in DC fan with fan speed control function
  • Output OK signal
  • Built in remote On-OFF control
  • Built in remote sense function
  • 3 years warranty
Wattage 480 504 504 480 504 504
Input Voltage 19~7VDC 19~72VDC 19~72VDC 72~144VDC 72~144VDC 72~144VDC
Output Current 40A 21A 10.5A 40A 21A 10.5A
Output Voltage 12V 24V 48V 12V 12V 48V
Dimensions 215*115*50mm 215*115*50mm 215*115*50mm 215*115*50mm 215*115*50mm 215*115*50mm
Working Temperature -20~60°C
Safety Standards IEC62368-1, TUV EN62368-1, EAC TP TC 004 approved
EMC Standards Compliance to EN55032 (CISPR32) Class B, EAC TP TC 020
