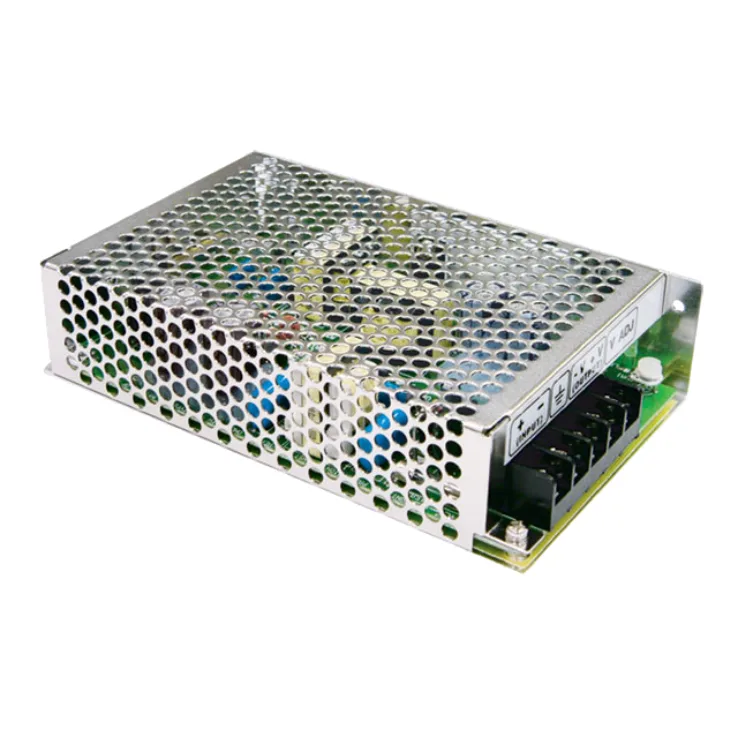

Mean Well SD-50 Series DC-DC Power Supplies 50W

Download Datasheet
Models:
  • SD-50A-12
  • SD-50A-24
  • SD-50A-5
  • SD-50B-12
  • SD-50B-24
  • SD-50B-5
  • SD-50C-12
  • SD-50C-24
  • SD-50C-5
Manufacturer: Mean Well
Type: DC-DC Power Supplies

SD-50 Series Features:

4:1 & 2:1 DC Input range

Protections: Short Circuit / Overload / Over voltage / Over temp / Input polarity

Other Features:

  • DC input active surge current limiting
  • 2000VAC I/O Isolation
  • Forced air cooling by built in DC fan with fan speed control function
  • Output OK signal
  • Built in remote On-OFF control
  • Built in remote sense function
  • 3 years warranty
Wattage 50 50 50 50 50 50 50 50 50
Input Voltage 9.2~18 9.2~18 9.2~18 19~36 19~36 19~36 36~72 36~72 36~72
Output Current 0~8.5 0~2.1 0~10 0~4.2 0~2.1 0~10 0~4.2 0~2.1 0~10
Output Voltage 12 24 5 12 24 5 12 24 5
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment 11~16V 23~30V 4.5~5.5v 11~16V 23~30V 4.5~5.5V 11~16V 23~30V 4.5~5.5V
Dimensions 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38
Working Temperature -40~+85B0C
Safety Standards Meet LVD
EMC Standards EN55022 class B, EN61000-4-2,3,4,5,6,8
