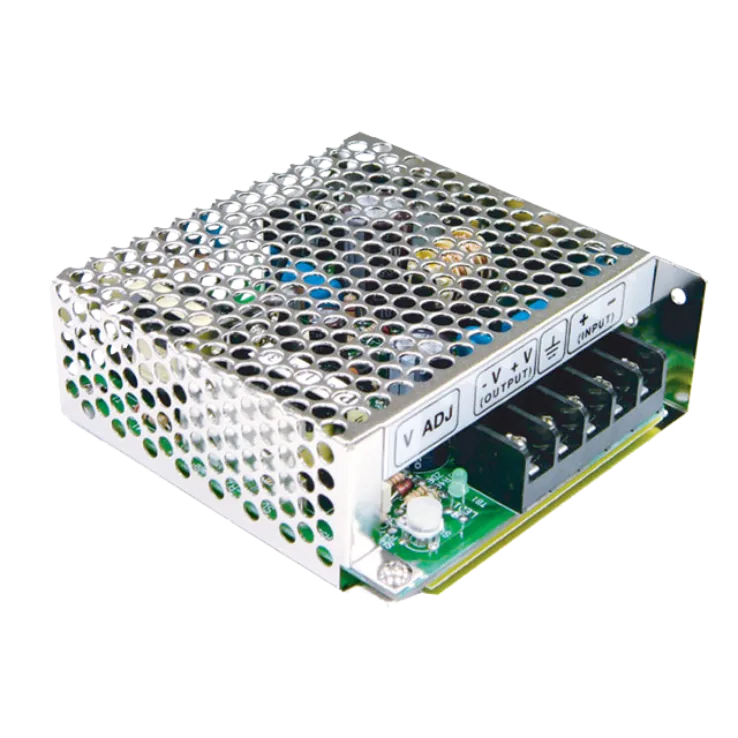

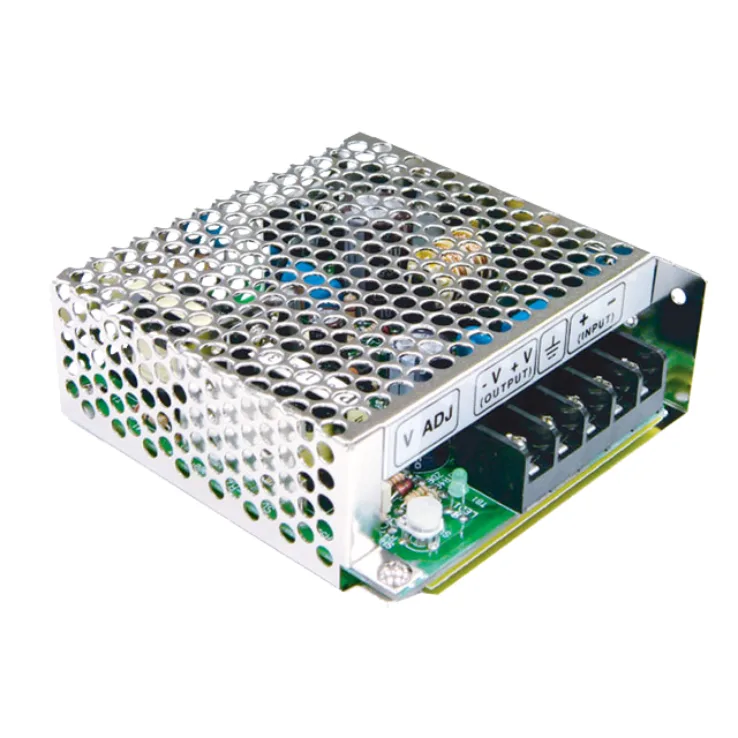

SD-25 Series DC-DC Power Supplies 25–26.4W

Download Datasheet
Models:
  • SD-25A-5
  • SD-25B-5
  • SD-25C-5
  • SD-25A-12
  • SD-25B-12
  • SD-25C-12
  • SD-25A-24
  • SD-25B-24
  • SD-25C-24
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

SD-25 Series Features:

2:1 wide input range

Protections: Short Circuit / Overload / Over voltage

Other Features:

  • 1500VAC I/O isolation
  • Built in EMI filter, low ripple noise
  • 100% full load burn in test
  • Low cost, high reliability
  • 2 years warranty
Wattage 25 25 25 25.2 25.2 25.2 26.4 26.4 26.4
Input Voltage 9.2~18VDC 19~36VDC 36~72VDC 9.2~18VDC 19~36VDC 36~72VDC 36~72VDC 19~36VDC 36~72VDC
Output Current 5A 5A 5A 2.1A 2.1A 2.1A 1.1A 1.1A 1.1A
Output Voltage 5V 5V 5V 12V 12V 12V 24V 24V 24V
Dimensions 99*97*36mm 99*97*36mm 99*97*36mm 99*97*36mm 99*97*36mm 99*97*36mm 99*97*36mm 99*97*36mm 99*97*36mm
Working Temperature -10~60°C
Safety Standards Design refer to LVD, EAC TP TC 004 approved
EMC Standards Compliance to EN55032 (CISPR32) Class B, EAC TP TC 020
