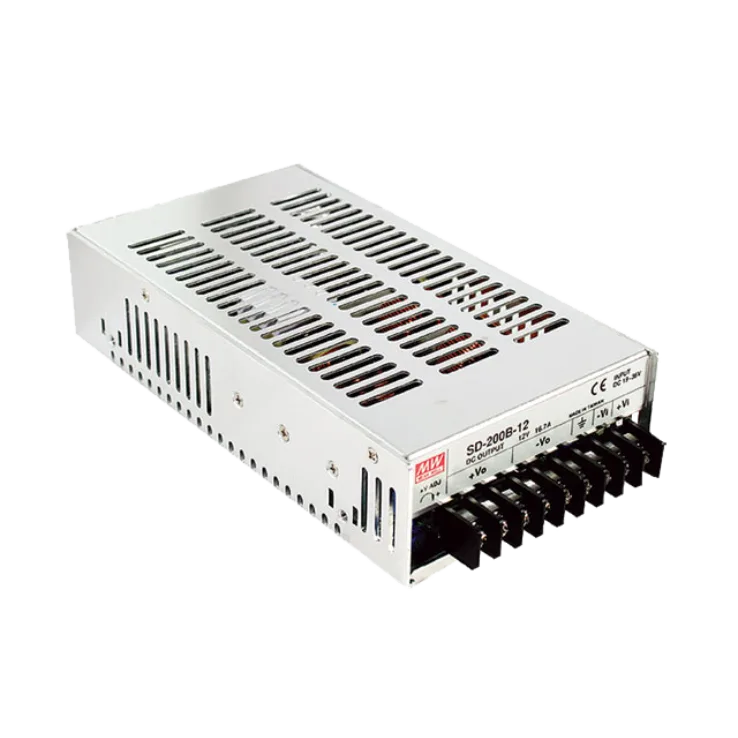

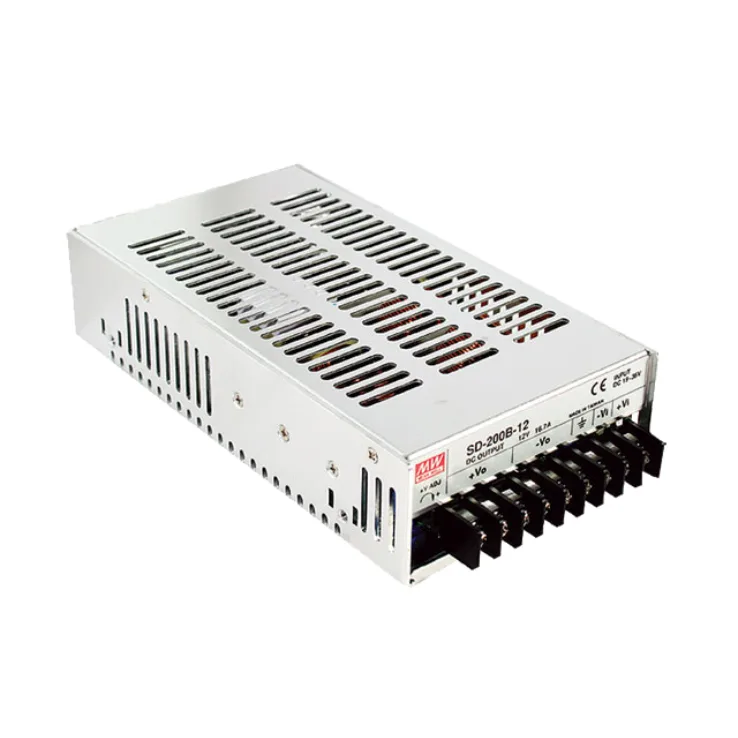

SD-200 Series DC-DC Power Supplies 170–201.6W

Download Datasheet
Models:
  • SD-200B-5
  • SD-200B-12
  • SD-200B-24
  • SD-200B-48S
  • SD-200C-5
  • SD-200C-12
  • SD-200C-24
  • SD-200C-48
  • SD-200D-5
  • SD-200D-12
  • SD-200D-24
  • SD-200D-48
Manufacturer: Mean Well
Type: DC-DC Power Supplies

SD-200 Series Features:

2:1 wide input range

Protections: Short Circuit / Overload / Over voltage / Over temp.

Other Features:

  • 1500VAC I/O isolation
  • Built in EMI filter, low ripple noise
  • Cooling by free air convection
  • 100% full load burn in test
  • Low cost, high reliability
  • 2 years warranty
Wattage 170 200.4 201.6 201.6 200 200.4 201.6 201.6 200 200.4 201.6 201.6
Input Voltage 19~36VDC 19~36V 19~36VDC 19~36VDC 36~72VDC 36~72VDC 36~72VDC 36~72VDC 72~144VDC 72~144VDC 72~144VDC 72~144VDC
Output Current 34A 16.7A 8.4A 4.2A 40A 16.7A 8.4A 4.2A 40A 16.7A 8.4A 4.2A
Output Voltage 5V 12V 24V 48V 5V 12V 24V 48V 5V 12V 24V 48V
Dimensions 215*115*50mm 215*115*50mm 215*115*50mm 215*115*50mm 215*115*50mm 215*115*50mm 215*115*50mm 215*115*50mm 215*115*50mm 215*115*50mm 215*115*50mm 215*115*50mm
Working Temperature -20~60°C
Safety Standards UL62368-1approved (for SD-200C-5/12/24 type only), IEC62368-1 CB approved by TUV (for D type only), EAC TP TC 004 approved
EMC Standards Compliance to EN55032(CISPR32) Class B, EAC TP TC 020
