MEAN WELL
RSDW60 & RDDW60 Series DC-DC Power Supplies 60W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
RSDW60 & RDDW60 Series Features:

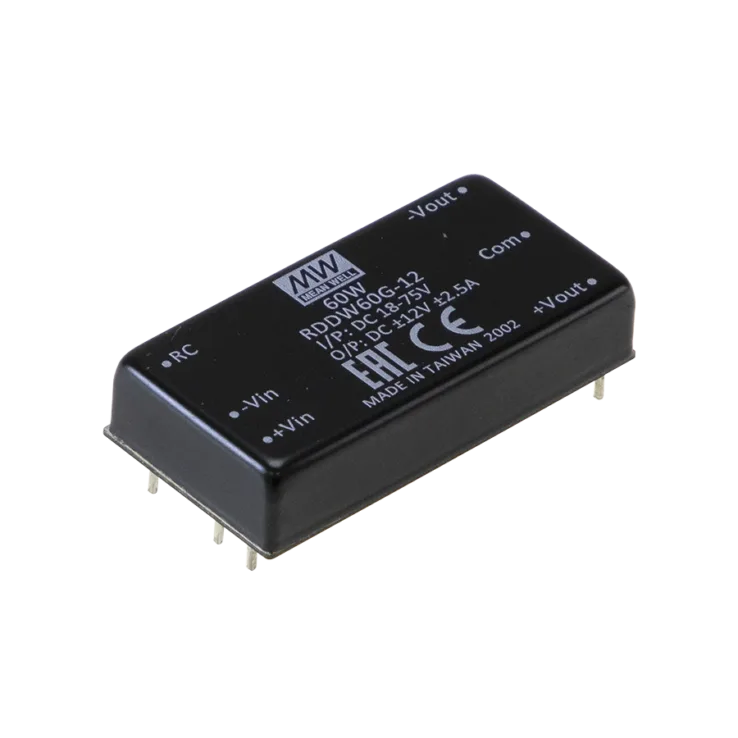

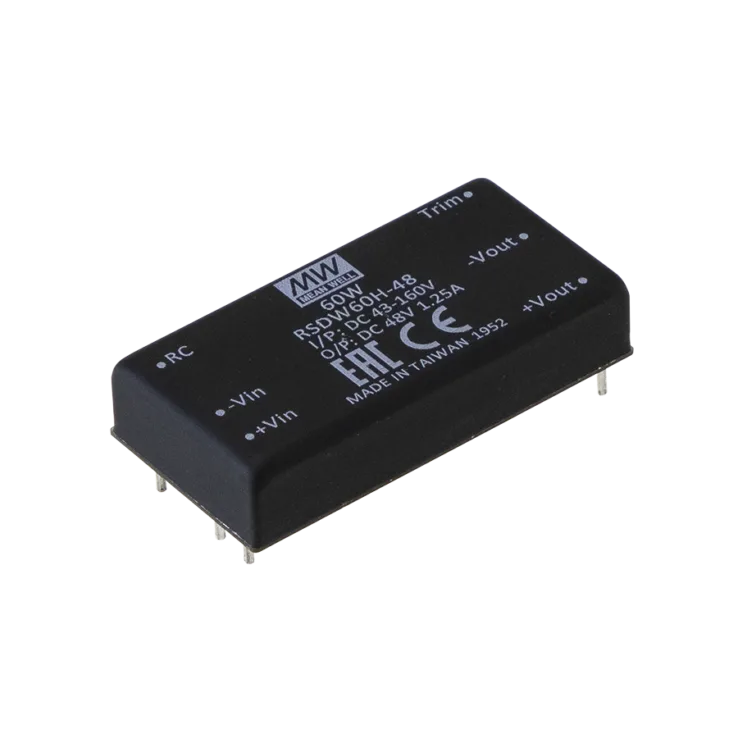

RSDW60 and RDDW60 series is 60W module type DC-DC reliable railway converter with 2"x1" package.
Features:
- Compliance with EN50155 railway standard
- 2"x1" compact size with low profile (10.5mm)
- 4:1 wide input range
- Wide operating temperature -40~+85°C
- No minimum load required
- Full encapsulated
- Protections: Short circuit (continuous) / Overload / Over voltage / Input under voltage
- 1.6KVDC, 3KVDC I/O isolation by modules
- Remote ON/OFF control
- 3years warranty
| Wattage | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 9~36V | 9~36V | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | 18~75V | 18~75V | 40~160V | 40~160V | 40~160V | 40~160V | 9~36V | 9~36V | 18~75V | 18~75V |
| Output Current | 12A | 12A | 5A | 4A | 2.5A | 12A | 12A | 5A | 4A | 2.5A | 12A | 5A | 2.5A | 1.25A | ~±2.5A | ~±2.0A | ~±2.5A | ~±2.0AR |
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V | 3.3V | 5V | 12V | 15V | 24V | 5V | 12V | 24V | 48V | ±12V | ±15V | ±12V | ±15V |
| Dimensions | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm |
| Working Temperature | -40~+85°C | |||||||||||||||||
| Safety Standards | EAC TP TC 004 approved | |||||||||||||||||
| EMC Standards | EN55032 | |||||||||||||||||
