MEAN WELL

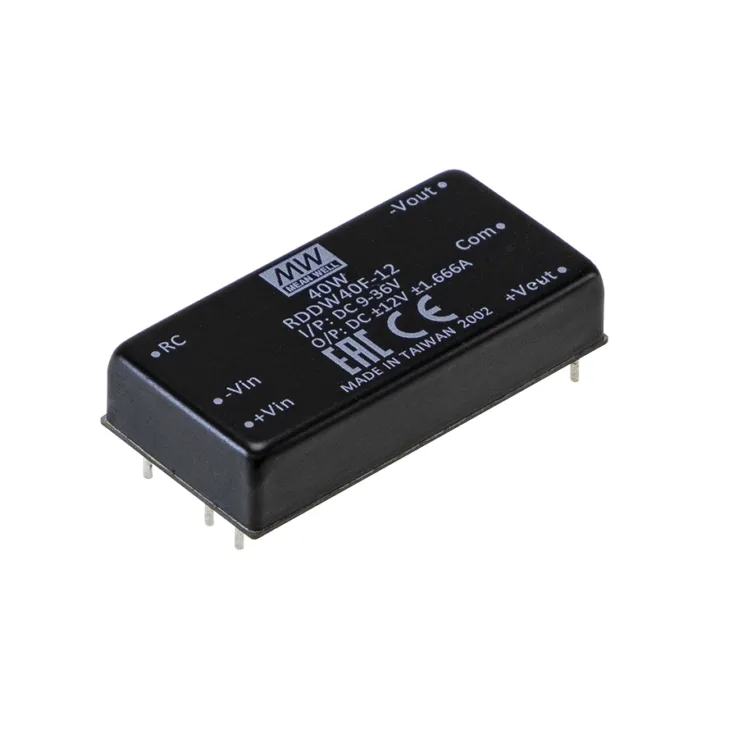

RSDW40 & RDDW40 Series DC-DC Power Supplies 40W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
RSDW40 & RDDW40 Series Features:
RSDW40 and RDDW series is 40W module type DC-DC reliable railway converter with 2"x1" package.
Features:
- Compliance with EN50155 railway standard
- DIP 2"x1" package with standard pinout
- 4:1 wide input range
- Wide operating temperature -40~+90°C
- No minimum load required
- Full encapsulated
- Protections: Short circuit (continuous) / Overload / Over voltage / Input under voltage
- 1.6KVDC, 3KVDC I/O isolation by modules
- Remote ON/OFF control
- 3years warranty
| Wattage | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 9~36V | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | 18~75V | 40~160V | 40~160V | 40~160V | 40~160V | 9~36V | 9~36V | 18~75V | 18~75V |
| Output Current | 10A | 8A | 3.333A | 2.666A | 10A | 8A | 3.333A | 2.666A | 8A | 3.333A | 1.667A | 0.833A | 0~±1.666A | 0~±1.333A | 0~±1.666A | 0~±1.333A |
| Output Voltage | 3.3V | 5V | 12V | 15V | 3.3V | 5V | 12V | 15V | 5V | 12V | 24V | 48 | ±12V | ±15V | ±12V | ±15A |
| Dimensions | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm | 50.8*25.4*10.5mm |
| Working Temperature | -40~+90°C | |||||||||||||||
| Safety Standards | EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | EN55032 | |||||||||||||||
