MEAN WELL

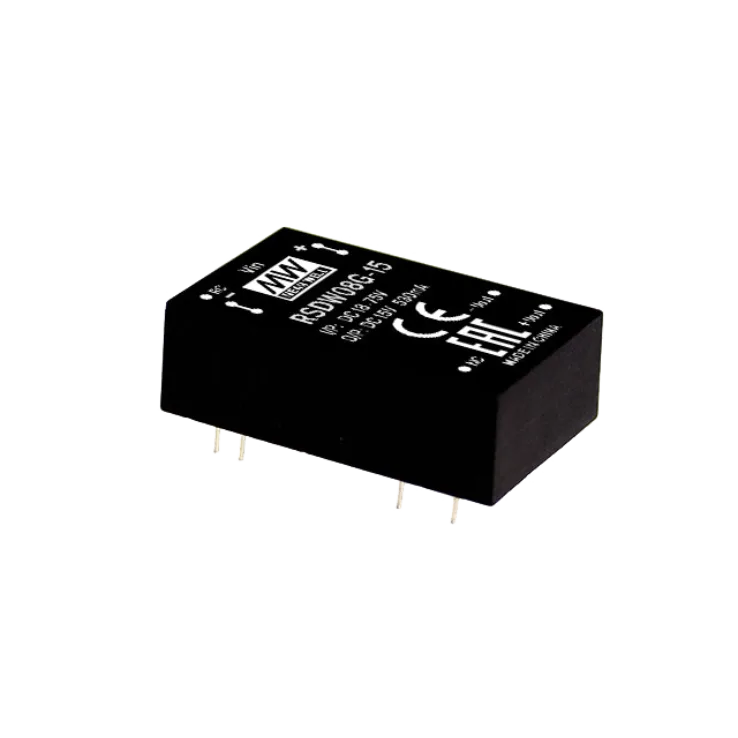

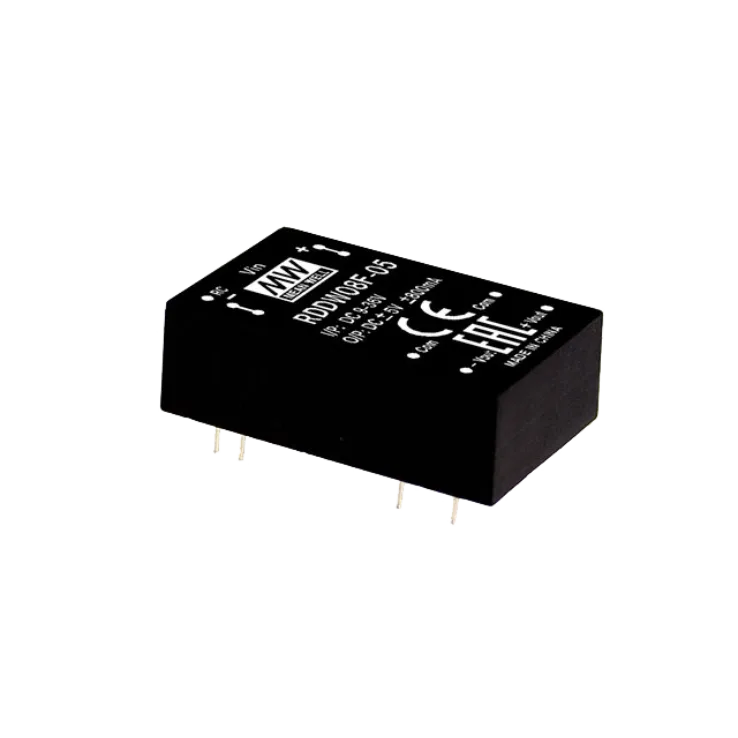

RSDW08 & RDDW08 Series DC-DC Power Supplies 8W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
RSDW08 & RDDW08 Series Features:
RSDW08 and RDDW08 series is 8W module type DC-DC reliable railway converter with DIP24 package.
Features:
- Compliance with EN50155 railway standard
- DIP 24 package with standard pinout
- 4:1 wide input range
- Wide operating temperature -40~+85°C
- No minimum load required
- Full encapsulated
- Protections: Short circuit (continuous) / Overload / Over voltage / Input under voltage
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3years warranty
| Wattage | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 9~36V | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | 18~75V | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V |
| Output Current | 2000mA | 1600mA | 666mA | 530mA | 2000mA | 1600mA | 666mA | 530mA | ±0~800mA | ±0~333mA | ±0~265mA | ±0~800mA | ±0~333mA | ±0~265mA |
| Output Voltage | 3.3V | 5V | 12V | 15V | 3.3V | 5V | 12V | 15V | ±5V | ±12V | ±15V | ±5v | ±12V | ±15V |
| Dimensions | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm | 31.8*20.3*10.2mm |
| Working Temperature | -40~85°C | |||||||||||||
| Safety Standards | EAC TP TC 004 approved | |||||||||||||
| EMC Standards | EN55032 | |||||||||||||
