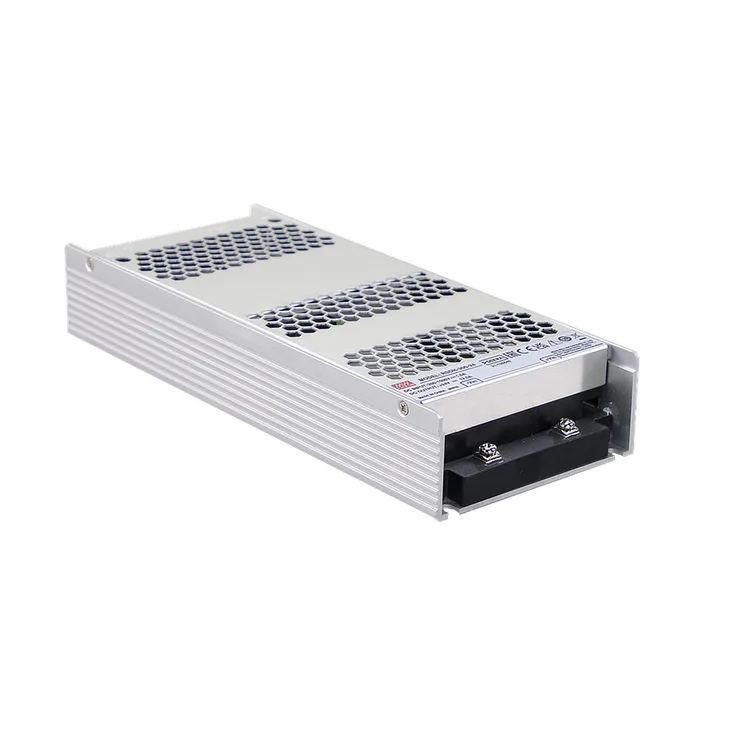

RSDH-300 Series DC-DC Power Supplies 240–300W

Download Datasheet
Models:
  • RSDH-300-12
  • RSDH-300-24
  • RSDH-300-32
  • RSDH-300-48
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

RSDH-300 Series Features:

RSDH-300 series is a 250~1500Vdc ultra-high input enclosed type DC-DC converter which can supply stable working voltage for the load.

Features:

  • 250~1500Vdc 6:1 ultra-wide input range
  • Withstand 1700Vdc surge input for 10 seconds
  • 4KVac I/O high isolation (reinforced isolation)
  • Protections: short circuit/ overload/ over voltage/ over temperature/ DC input under voltage/ DC input reverse polarity
  • Fanless design, half encapsulated, cooling by free air convection
  • -40~80°C ultra-wide operating temperature (>55°C derating)
  • Over voltage II
  • Operating altitude up to 5000 meters
  • DC output voltage adjustable (12~15V, 24~29V, 30~36V, 48~58V)
  • 1U low profile 41mm
  • 3 years warranty
Wattage 240 300 300 300
Input Voltage 250~1500Vdc 250~1500Vdc 250~1500Vdc 250~1500Vdc
Output Current 20 12.5 9.37 6.25
Output Voltage 12 24 32 48
Dimensions 237x100x41mm 237x100x41mm 237x100x41mm 237x100x41mm
Working Temperature -40~80℃
Safety Standards IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved; Design refer to UL1741(By request)
EMC Standards BS EN/EN55032(CISPR32)
