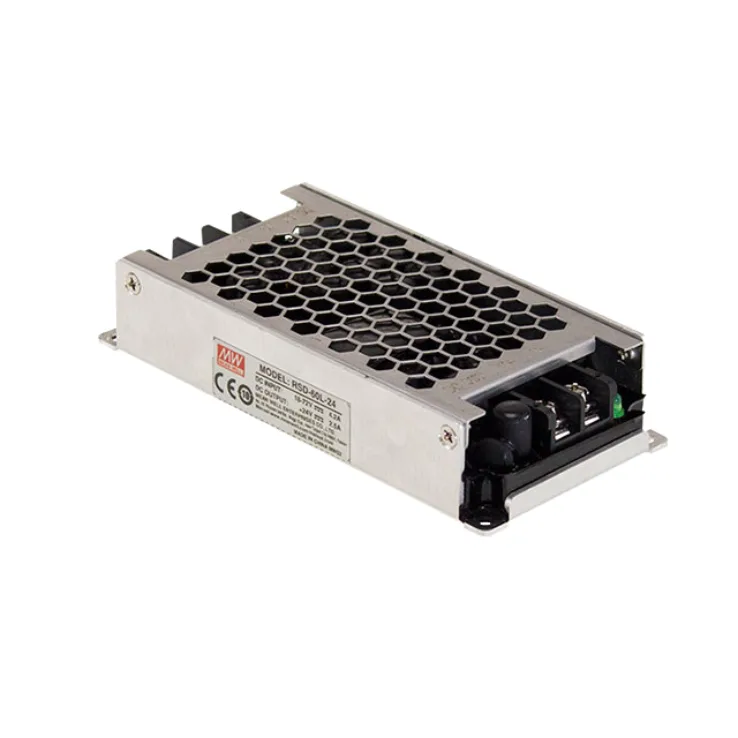

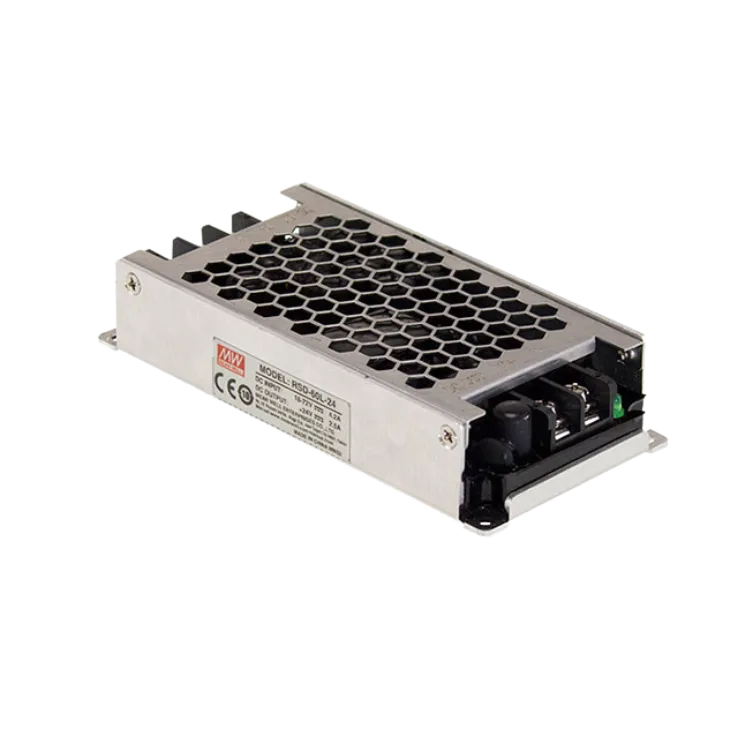

RSD-60 Series DC-DC Power Supplies 39.6–60W

Models:	RSD-60G-3.3 RSD-60G-5 RSD-60G-12 RSD-60G-24 RSD-60H-3.3 RSD-60H-5 RSD-60H-12 RSD-60H-24 RSD-60L-3.3 RSD-60L-5 RSD-60L-12 RSD-60L-24
Manufacturer:	MEAN WELL
Type:	DC-DC Power Supplies

RSD-60 Series Features:

Compliance to EN50155 and EN45545-2 railway standard

Protections: Short circuit / Overload / Over voltage / Input reverse polarity

Other Features:

Ultra compact and 1U low profile (25mm)
4:1 wide input range
No minimum load required
4000VDC I/O isolation
Half encapsulated, cooling by free air convection
-40~+70°C wide working temperature
Built-in constant current limiting circuit
LED indicator for power on
3 years warranty

Wattage

39.6

Input Voltage

9-36VDC

Output Current

0~12

0-5

0~2.5

0~12

0~5

0~2.5

0~12

0~5

0~2.5

Output Voltage

3.3

Output Voltage Options

Single

DC output adjustment

3.3V

12V

24V

3.3V

12V

24V

3.3V

12V

24V

Dimensions

128 x 60 x 25

Working Temperature

-40~+55°C(no derating), +70°C @ 60% load by free air convection, +70°C no derating with external base plate, TX class compliance

Safety Standards

Meet IEC60950-1 (LVD)

EMC Standards

EM55032, EN6100-3-2,3, EN61000-4-2,3,4,5,6. Compliance to EN5545-2 for fire protection; Meet EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
