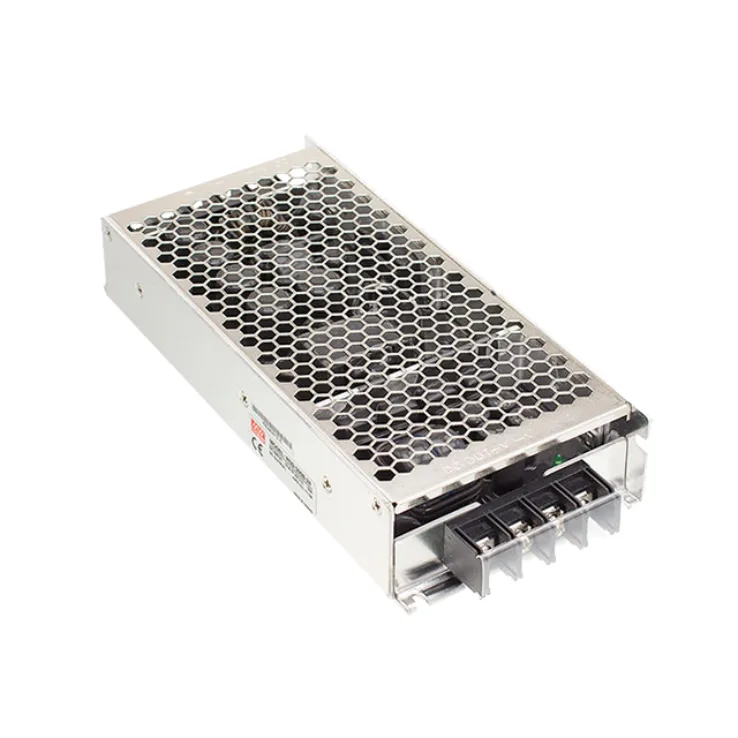

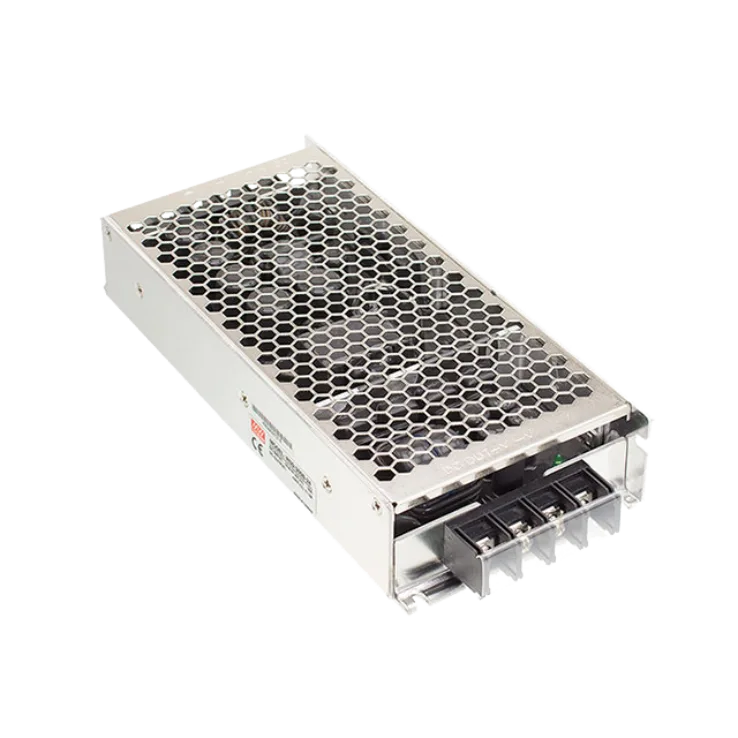

RSD-300 Series DC-DC Power Supplies 300W

Download Datasheet
Models:
  • RSD-300B-12
  • RSD-300B-24
  • RSD-300B-48
  • RSD-300C-12
  • RSD-300C-24
  • RSD-300C-48
  • RSD-300D-12
  • RSD-300D-24
  • RSD-300D-48
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

RSD-300 Series Features:

2:1 wide input range

Design refer to EN50155 railway standard

Protections: Short circuit / Overload / Over voltage / Over temp./ Input reverse polarity

Other features:

  • 4000VDC I/O isolation
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 39mm
  • Alll using 105°C long life electrolytic capacitors
  • LED indicator for power on
  • 3 years warranty
Wattage 300 300 300 300 300 300 300 300 300
Input Voltage 14.4~33.6 14.4~33.6 14.4~33.6 28.8~67.2 28.8~67.2 28.8~67.2 57.6~154 57.6~154 57.6~154
Output Current 0~25 0~25 0~25 0~25 0~25 0~25 0~25 0~25 0~25
Output Voltage 12 24 48 12 24 48 12 24 48
Output Voltage Options Single Single Single Single Single Single Single Single Single
Dimensions 216x 97x 40 216x 97x 40 216x 97x 40 216x 97x 40 216x 97x 40 216x 97x 40 216x 97x 40 216x 97x 40 216x 97x 40
Working Temperature -40~+55°C(no derating), +70°C @ 60% load by free air convection, +70°C no derating with external base plate, TX class compliance
Safety Standards Meet IEC60950-1 (LVD)
EMC Standards Compliance to EN55022 class B, EN50121-3-2, EN61000-4-2, 3, 4, 6, 8
