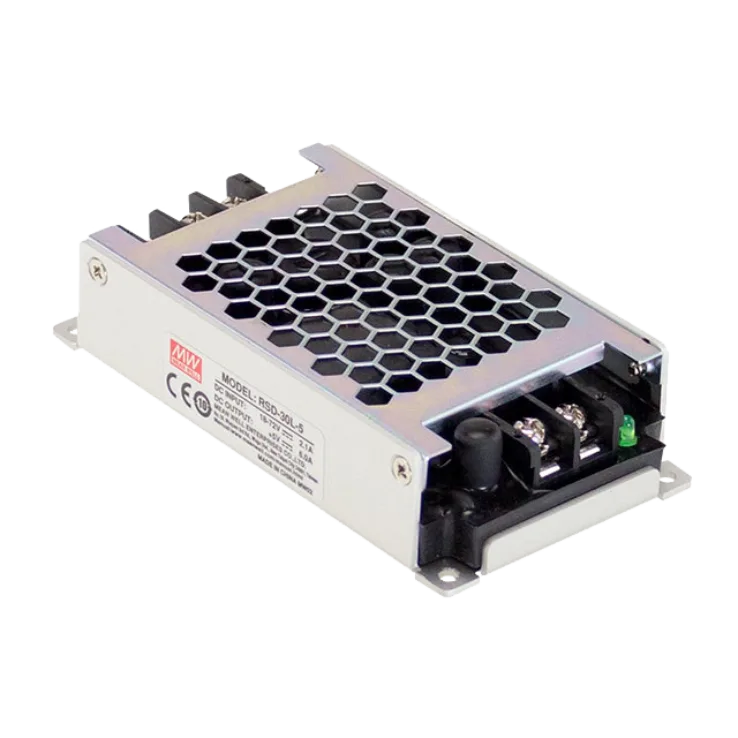

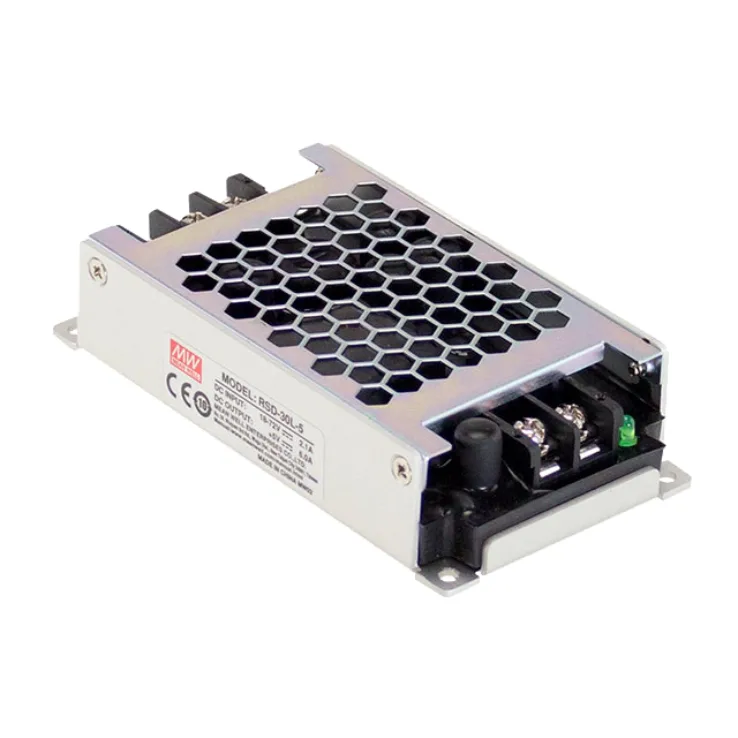

Mean Well RSD-30 Series DC-DC Power Supplies 19.8–30W

Download Datasheet
Models:
  • RSD-30G-12
  • RSD-30G-24
  • RSD-30G-3.3
  • RSD-30G-5
  • RSD-30H-12
  • RSD-30H-24
  • RSD-30H-3.3
  • RSD-30H-5
  • RSD-30L-12
  • RSD-30L-24
  • RSD-30L-3.3
  • RSD-30L-5
Manufacturer: Mean Well
Type: DC-DC Power Supplies

RSD-30 Series Features:

Compliance to EN50155 and EN45545-2 railway standard

Protections: Short circuit / Overload / Over voltage / Input reverse polarity

Other Features:

  • Ultra compact and 1U low profile (25mm)
  • 4:1 wide input range
  • No minimum load required
  • 4000VDC I/O isolation
  • Half encapsulated, cooling by free air convection
  • -40~+70B0C wide working temperature
  • Built-in constant current limiting circuit
  • LED indicator for power on
  • 3 years warranty
Wattage 30 30 19.8 30 30 30 19.8 30 30 30 19.8 30
Input Voltage 9-36VDC 9-36VDC 9-36VDC 9-36VDC 9-36VDC 9-36VDC 9-36VDC 9-36VDC 9-36VDC 9-36VDC 9-36VDC 9-36VDC
Output Current 0-2.5 0~1.25 0~6 0~6 0~2.5 0~1.25 0~6 0~6 0~2.5 0~1.25 0~6 0~6
Output Voltage 12 24 3.3 5 12 24 3.3 5 12 24 3.3 5
Output Voltage Options Single Single Single Single Single Single Single Single Single Single Single Single
DC output adjustment 12V 24V 3.3V 5V 12V 24V 3.3V 5V 12V 24V 3.3V 5V
Dimensions 113 x 60 x 25 113 x 60 x 25 113 x 60 x 25 113 x 60 x 25 113 x 60 x 25 113 x 60 x 25 113 x 60 x 25 113 x 60 x 25 113 x 60 x 25 113 x 60 x 25 113 x 60 x 25 113 x 60 x 25
Working Temperature -40B0C~+55B0C
Safety Standards Meet IEC60950-1 (LVD)
EMC Standards EM55032, EN6100-3-2,3, EN61000-4-2,3,4,5,6. Compliance to EN5545-2 for fire protection; Meet EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
