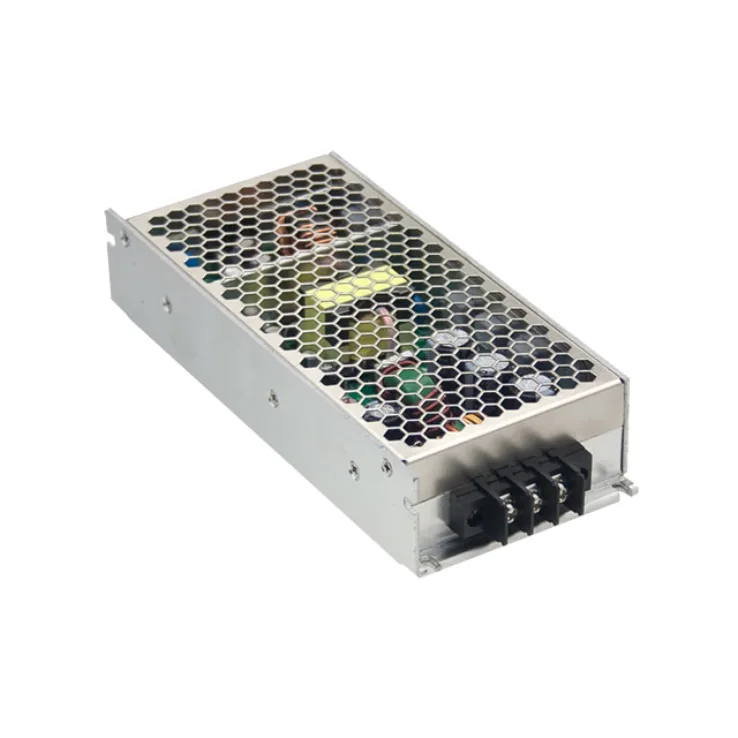

RSD-200 Series DC-DC Power Supplies 200W

Download Datasheet
Models:
  • RSD-200B-12
  • RSD-200B-24
  • RSD-200B-48
  • RSD-200C-12
  • RSD-200C-24
  • RSD-200C-48
  • RSD-200D-12
  • RSD-200D-24
  • RSD-200D-48
Manufacturer: Mean Well
Type: DC-DC Power Supplies

RSD-200 Series Features:

Design refer to EN50155 railway standard

Protections: Short circuit / Overload / Over voltage / Over temp./ Input reverse polarity

Other features:

  • 2:1 wide input range
  • 4000VDC I/O isolation
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 39mm
  • Alll using 105°C long life electrolytic capacitors
  • LED indicator for power on
  • 3 years warranty
Wattage 200 200 200 200 200 200 200 200 200
Input Voltage 14.4~33.6 14.4~33.6 14.4~33.6 28.8~67.2 28.8~67.2 28.8~67.2 57.6~154 57.6~154 57.6~154
Output Current 0~16.7 0~16.7 0~16.7 0~16.7 0~8.4 0~4.2 0~16.7 0~8.4 0~4.2
Output Voltage 12 24 48 12 24 48 12 24 48
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment N/A N/A N/A N/A N/A N/A N/A N/A N/A
Dimensions 191x 86x 39 191x 86x 39 191x 86x 39 191x 86x 39 191x 86x 39 191x 86x 39 191x 86x 39 191x 86x 39 191x 86x 39
Working Temperature -40~+55°C(no derating), +70°C @ 60% load by free air convection, +70°C no derating with external base plate, TX class compliance
Safety Standards Meet IEC60950-1 (LVD)
EMC Standards Compliance to EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,6,8
