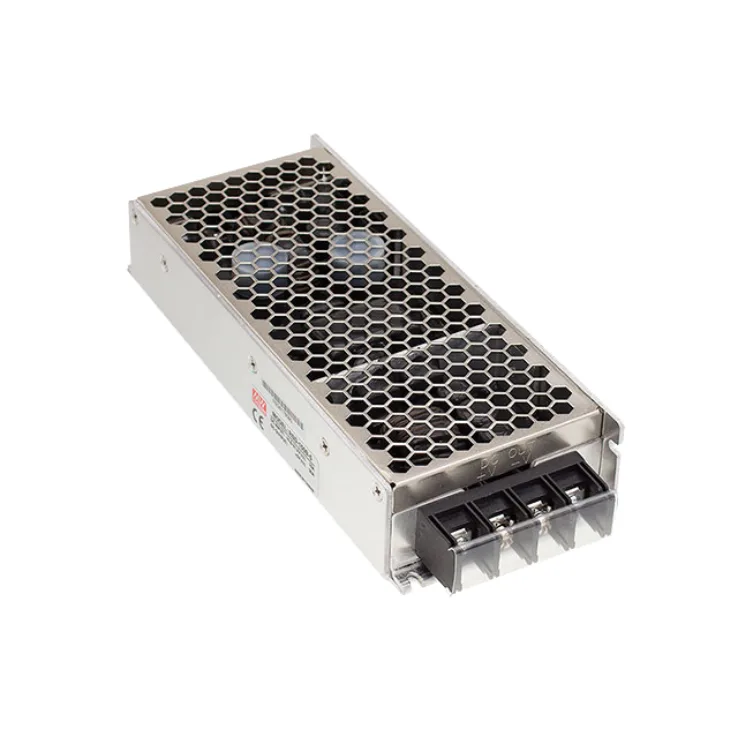

RSD-150 Series DC-DC Power Supplies 150W

Download Datasheet
Models:
  • RSD-150B-5
  • RSD-150B-12
  • RSD-150B-24
  • RSD-150C-5
  • RSD-150C-12
  • RSD-150C-24
  • RSD-150D-5
  • RSD-150D-12
  • RSD-150D-24
Manufacturer: Mean Well
Type: DC-DC Power Supplies

RSD-150 Series Features:

Compliance to EN50155 railway standards

Protections: Short circuit / Overload / Over voltage / Over temp./ Input reverse polarity

Other features:

  • 2:1 wide input range
  • 4000VDC I/O isolation
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 36mm
  • All using 105°C long life electrolytic capacitors
  • 100% full load burn-in test
  • 3 years warranty
Wattage 150 150 150 150 150 150 150 150 150
Input Voltage 14.4~33.6 14.4~33.6 14.4~33.6 28.8~67.2 14.4~33.6 28.8~67.2 57.6~154 57.6~154 57.6~154
Output Current 0~30 0~12.5 0~6.5 0~30 0~12.5 0~6.3 0~30 0~12.5 0~6.3
Output Voltage 5 12 24 5 12 24 5 12 24
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment N/A N/A N/A N/A N/A N/A N/A N/A N/A
Dimensions 189x 77x 36 189x 77x 36 189x 77x 36 189x 77x 36 189x 77x 36 189x 77x 36 189x 77x 36 189x 77x 36 189x 77x 36
Working Temperature -40~+55°C(no derating), +70°C @ 60% load by free air convection, +70°C no derating with external base plate, TX class compliance
Safety Standards Meet IEC60950-1 (LVD)
EMC Standards Compliance to EN55022 class B, EN61000-4-2,3,4,6,8
