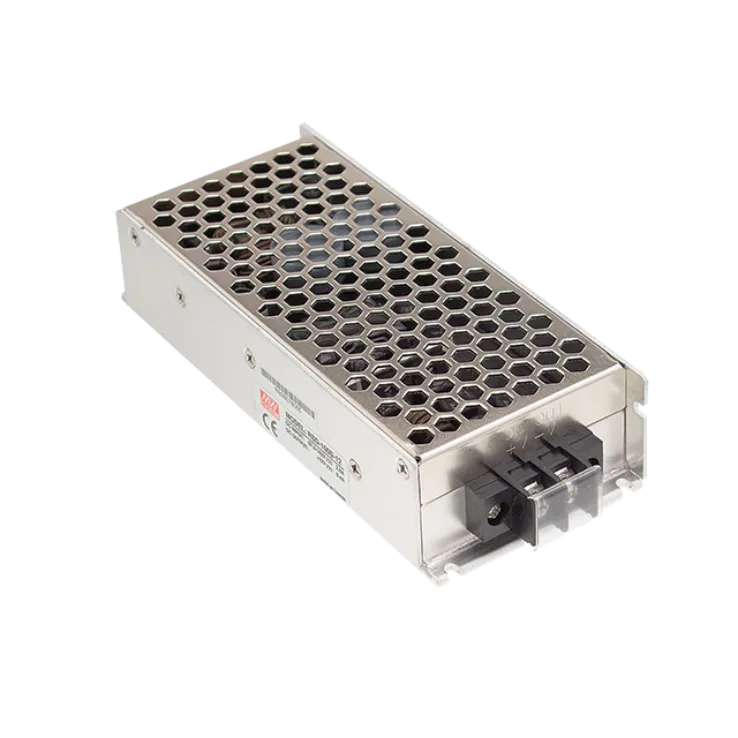

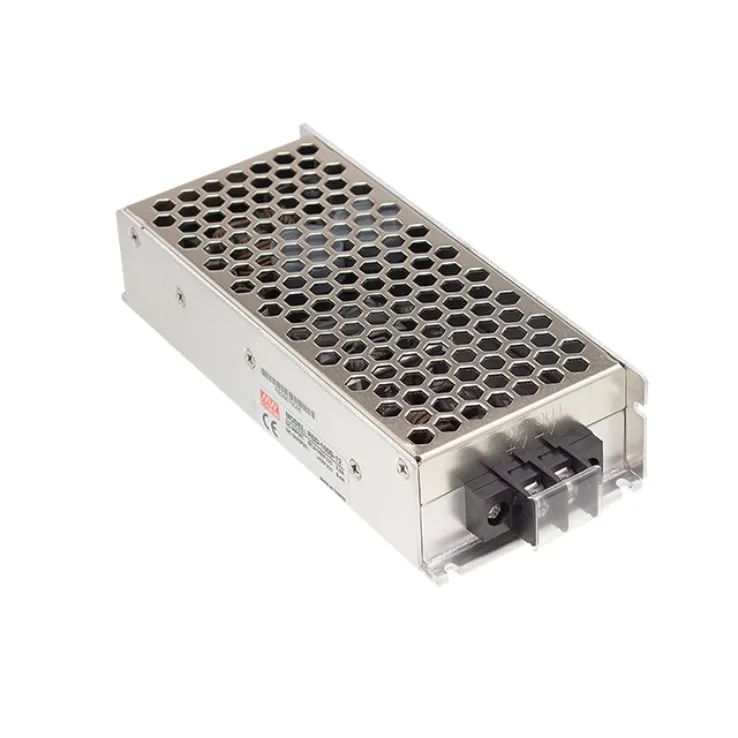

RSD-100 Series DC-DC Power Supplies 100W

Models:	RSD-100B-5 RSD-100B-12 RSD-100B-24 RSD-100C-5 RSD-100C-12 RSD-100C-24 RSD-100D-5 RSD-100D-12 RSD-100D-24
Manufacturer:	MEAN WELL
Type:	DC-DC Power Supplies

RSD-100 Series Features:

Compliance to EN50155 railway standard

Protections: Short Circuit / Overload / Over voltage / Input reverse polarity

Other Features:

Spec	RSD-100B-5	RSD-100B-12	RSD-100B-24	RSD-100C-5	RSD-100C-12	RSD-100C-24	RSD-100D-5	RSD-100D-12	RSD-100D-24
Wattage	100	100	100	100	100	100	100	100	100
Input Voltage	14.4~33.6	14.4~33.6	14.4~33.6	28.8~67.2	28.8~67.2	28.8~67.2	57.6~154	28.8~67.2	28.8~67.2
Output Current	0~20	0~8.4	0~4.2	0~20	0~8.4	0~4.2	0~20	0~8.40	0~4.2
Output Voltage	5	5	5	5	5	5	5	5	5
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Dimensions	161x68x36	161x68x36	161x68x36	161x68x36	161x68x36	161x68x36	161x68x36	161x68x36	161x68x36
Working Temperature	-40~+55°C(no derating), +70°C @ 60% load by free air convection, +70°C no derating with external base plate, TX class compliance
Safety Standards	Meet IEC60950-1 (LVD)
EMC Standards	Compliance to EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,6,8
